PD6200/66 | HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM

  • MAP: $4,600.00 / EA
  • List Price: $4,600.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM
Click image to enlarge
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM

PD6200/66
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM

  • UM : EA

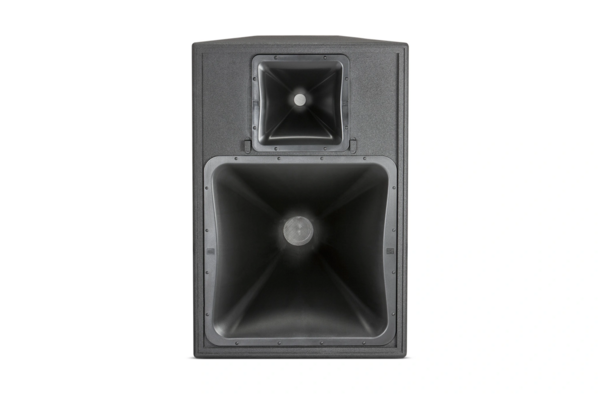

The PD6200/66 is an 8-inch, 2-way horn-loaded loudspeaker featuring a 60° x 60° horn. It is designed for mid-high frequency applications requiring controlled directivity.

This loudspeaker provides precision directivity with a horn configuration that delivers consistent coverage over the specified 60° horizontal and vertical dispersion angles. The design supports high output performance in applications demanding pattern accuracy.

Features:

  • 200 mm dual-coil CMCD cone midrange driver with high sensitivity and low distortion
  • Large format neodymium high-frequency driver for clear projection
  • PT Progressive Transition waveguides for pattern control and low distortion
  • Rotatable waveguides for horizontal or vertical cabinet orientation
Frequency Range 200 Hz to 18 kHz
Frequency Response 240 Hz to 16 kHz
Coverage Pattern 60° x 60°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF 350 W, HF 75 W
System Power Rating Passive Mode 300 W (1200 W peak)
Maximum SPL (1m) 135 dB-SPL continuous average (141 dB peak)
System Sensitivity (1w @ 1m) Passive Mode 110 dB SPL
Nominal Impedance 8ohms
