PD6200/66-WH | HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM

  • MAP: $4,600.00 / EA
  • List Price: $4,600.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM
Click image to enlarge

PD6200/66-WH
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM

  • UM : EA

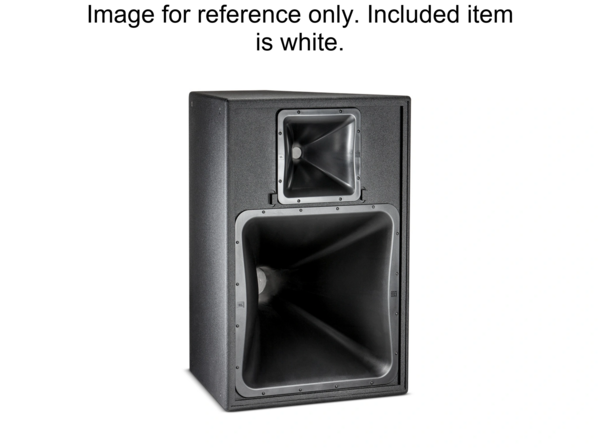

The PD6200/66-WH is an 8-inch, 2-way horn-loaded loudspeaker featuring a 60° x 60° horn for mid to high-frequency projection. It is engineered to deliver high output levels with controlled directivity suitable for various audio applications.

This speaker's design includes precision directivity technology to maintain consistent sound dispersion within its specified coverage angle.

Features:

  • 200 mm dual-coil CMCD cone midrange driver with high sensitivity and low distortion
  • Large format neodymium high-frequency driver for clear projection
  • PT Progressive Transition waveguides for pattern control and smooth response
  • Rotatable waveguides for horizontal or vertical cabinet orientation
Frequency Range 200 Hz to 18 kHz
Frequency Response (±3 dB) 240 Hz to 16 kHz
Coverage Pattern 60° x 60°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF 350 W (1400 W peak), HF 75 W (300 W peak)
System Power Rating (Passive Mode) 300 W (1200 W peak)
Maximum SPL (1m) 135 dB-SPL continuous average (141 dB peak)
System Sensitivity (1W @ 1m) 110 dB SPL
Nominal Impedance 8ohms
