HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN.200 MM
Click image to enlarge

PD6200/66-WRC
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN.200 MM

  • UM : EA
  • Estimated Weight: 164.0

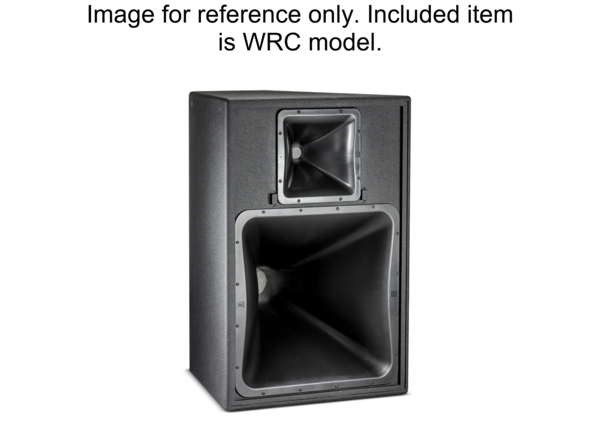

The PD6200/66-WRC is an 8-inch, two-way horn-loaded loudspeaker featuring a 60° x 60° horn for mid to high-frequency sound projection. It is engineered to deliver high output levels with precise pattern control.

Features:

  • 200 mm dual-coil midrange driver with high sensitivity and low distortion
  • Large format neodymium high-frequency driver for clear projection
  • Progressive Transition waveguides for excellent pattern control and smooth response
  • Rotatable waveguides for horizontal or vertical orientation
Frequency Range 200 Hz to 18 kHz
Frequency Response 240 Hz to 16 kHz
Coverage Pattern 40°x30°; 60°x40°; 60°x60°; 90°x50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF 350 W (1400 W peak); HF 75 W (300 W peak)
System Power Rating Passive Mode 300 W (1200 W peak)
Maximum SPL (1m) 135 dB-SPL continuous average, 141 dB peak
System Sensitivity (1W @ 1m) 110 dB SPL
Nominal Impedance 8ohms
