PD6200/66-WRX | HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM
Click image to enlarge

PD6200/66-WRX
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 60° COVERAGE PATTERN. 200 MM

  • UM : EA
  • Estimated Weight: 156.5

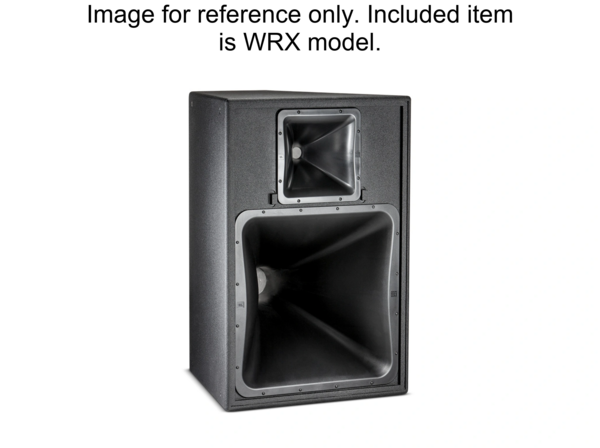

The PD6200/66-WRX is an 8-inch, 2-way horn-loaded loudspeaker featuring a 60° x 60° horn for mid-high frequency directivity. It is part of the PD6200 Series Precision Directivity lineup, designed to provide controlled sound dispersion with defined coverage angles.

This loudspeaker is engineered to deliver high output levels while maintaining consistent pattern control, suitable for installations requiring focused sound projection.

Features:

  • 200 mm dual-coil CMCD Cone Midrange Compression Driver
  • Large format neodymium HF driver
  • PT Progressive Transition waveguides for pattern control and low distortion
  • Rotatable waveguides for horizontal or vertical orientation
Frequency Range 200 Hz to 18 kHz
Frequency Response 240 Hz to 16 kHz
Coverage Pattern 60° x 60°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating MF 350 W (1400 W peak), HF 75 W (300 W peak)
System Power Rating Passive Mode 300 W (1200 W peak)
Maximum SPL 135 dB-SPL continuous average, 141 dB peak
System Sensitivity Passive Mode 110 dB SPL @ 1m, 1W
Nominal Impedance 8ohms
