PD6200/95
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN. 200 MM

  • UM : EA

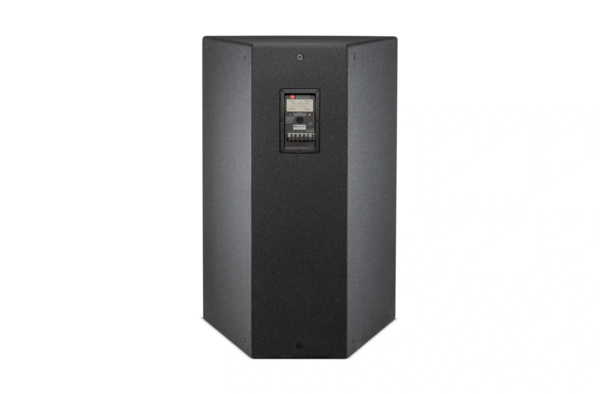

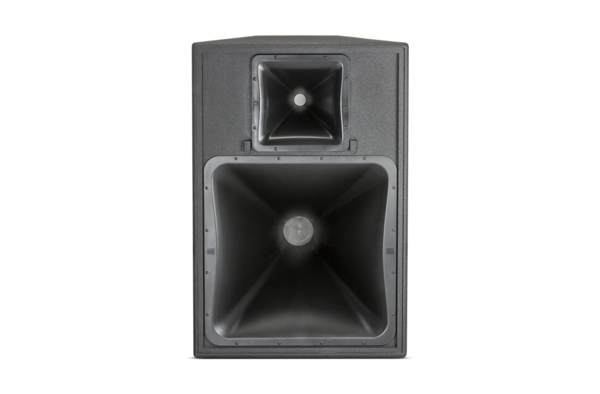

The PD6200/95 is an 8-inch, 2-way horn-loaded loudspeaker featuring a 90° horizontal by 50° vertical horn. It is designed to deliver controlled directivity for mid-high frequency sound reproduction.

Features:

  • 200 mm dual-coil cone midrange compression driver with high sensitivity and low distortion
  • Large format neodymium high-frequency driver for clear projection
  • Progressive Transition waveguides for pattern control and smooth frequency response
  • Rotatable waveguides for horizontal or vertical orientation
Frequency Range 200 Hz to 17 kHz
Frequency Response 240 Hz to 15 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF 350 W (1400 W peak), HF 75 W (300 W peak)
System Power Rating (Passive Mode) 300 W (1200 W peak)
Maximum SPL (1m) Bi-amp MF 134 dB cont avg (140 dB peak), HF 133 dB cont avg (139 dB peak); Passive 133 dB cont avg (139 dB peak)
System Sensitivity (1W @ 1m) Passive Mode 109 dB SPL
Nominal Impedance 8ohms
