PD6200/95-WH | HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.

  • MAP: $4,600.00 / EA
  • List Price: $4,600.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.
Click image to enlarge

PD6200/95-WH
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.

  • UM : EA

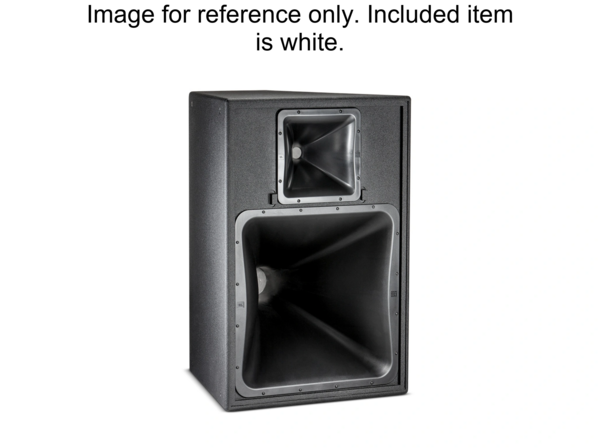

The PD6200/95-WH is an 8-inch, 2-way horn-loaded speaker featuring a 90° horizontal by 50° vertical horn dispersion pattern. The design provides mid to high-frequency sound reproduction with controlled directivity. This model is intended for use in audio applications where precise pattern control and high output levels are required.

Features:

  • 200 mm dual-coil CMCD cone midrange compression driver with high sensitivity and low distortion
  • Large format neodymium high-frequency driver for clear high-frequency projection
  • PT Progressive Transition waveguides with excellent pattern control and low distortion
  • Rotatable waveguides for horizontal or vertical cabinet orientation
Frequency Range 200 Hz to 17 kHz
Frequency Response 240 Hz to 15 kHz
Coverage Pattern 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF 350 W (1400 W peak), HF 75 W (300 W peak)
System Power Rating Passive Mode 300 W (1200 W peak)
Maximum SPL (1m) Bi-amp MF 134 dB, HF 133 dB; Passive 133 dB
System Sensitivity (1w @ 1m) Passive Mode 109 dB SPL
Nominal Impedance 8ohms
