PD6200/95-WRC | HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.
Click image to enlarge

PD6200/95-WRC
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.

  • UM : EA
  • Estimated Weight: 164.0

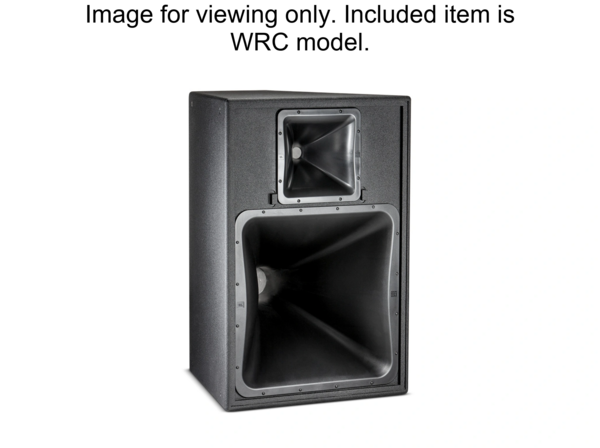

The PD6200/95-WRC is an 8-inch, 2-way horn-loaded loudspeaker featuring a 90° horizontal by 50° vertical horn dispersion pattern. It is designed for mid to high-frequency sound reproduction with precise directional control. The speaker utilizes horn loading to enhance output efficiency and pattern accuracy.

Features:

  • 200 mm dual-coil CMCD cone midrange driver with high sensitivity and low distortion
  • Large format neodymium high-frequency driver
  • Progressive Transition waveguides with excellent pattern control and low distortion
  • Rotatable waveguides for horizontal or vertical orientation
Frequency Range 200 Hz to 17 kHz
Frequency Response 240 Hz to 15 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF 350 W, HF 75 W
System Power Rating Passive Mode 300 W (IEC rated)
Maximum SPL (1m) Bi-amp mode MF 134 dB, HF 133 dB; Passive mode 133 dB
System Sensitivity (1W @ 1m) Passive Mode 109 dB SPL
Nominal Impedance 8ohms
