PD6200/95-WRX | HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.200 MM
PD6200/95-WRX
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.200 MM
PD6200/95-WRX
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 90° X 50° COVERAGE PATTERN.200 MM
- UM : EA
- Estimated Weight: 185.0

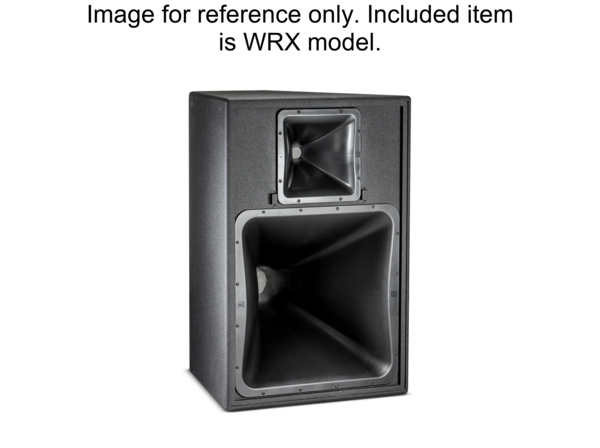

The PD6200/95-WRX is an 8-inch, 2-way horn-loaded loudspeaker featuring a 90° horizontal by 50° vertical horn. It is designed for mid to high-frequency sound reproduction with precise directivity control. The enclosure includes an 8-inch driver and is optimized for applications requiring controlled pattern dispersion.
The loudspeaker provides consistent beamwidth for focused sound projection and high output levels. Its horn-loaded design aids in improving efficiency and directivity, suitable for professional audio installations requiring accurate coverage and sound distribution.
Features:
- 200 mm dual-coil cone midrange compression driver
- Large format neodymium high-frequency driver
- Progressive Transition waveguides for pattern control and low distortion
- Rotatable waveguides for horizontal or vertical orientation
| Frequency Range | 200 Hz to 17 kHz |
|---|---|
| Frequency Response | 240 Hz to 15 kHz |
| Coverage Pattern | 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP, 1.7 kHz |
| Transducer Power Rating (AES) | MF 350 W, HF 75 W |
| System Power Rating (Passive Mode) | 300 W (IEC rated) |
| Maximum SPL (1m) | Bi-amp mode MF 134 dB, HF 133 dB; Passive mode 133 dB |
| System Sensitivity (1W @ 1m) | Passive Mode 109 dB SPL |
| Nominal Impedance | 8ohms |
