PD6212/43 | HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 40° X 30° COVERAGE
PD6212/43
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 40° X 30° COVERAGE
Click image to enlarge
PD6212/43
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 40° X 30° COVERAGE
- UM : EA

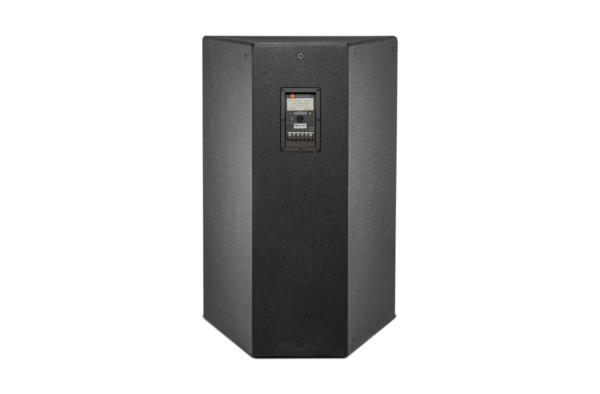

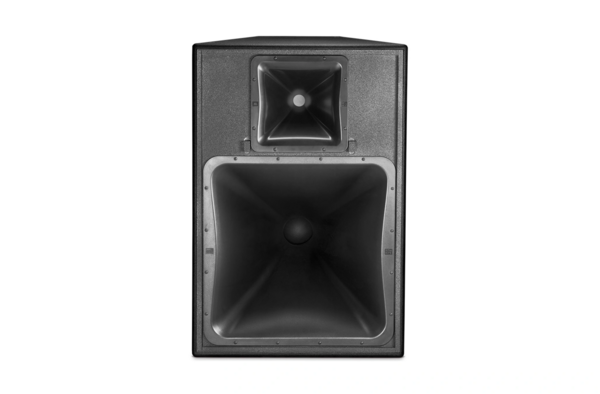

The PD6212/43 is a 12-inch two-way horn-loaded loudspeaker featuring a 40° horizontal by 30° vertical horn coverage pattern. It is engineered for applications that require high sound output and precise directivity control.
The speaker provides frequency response extending down to 80 Hz and can be used independently for music or speech reinforcement or integrated with subwoofers to achieve full-range audio coverage.
Features:
- 300 mm (12 in) horn-loaded low-frequency driver
- Large-format high-frequency driver
- High sensitivity design
- High continuous SPL capability
- PT Progressive Transition waveguides for broadband pattern control
- Low distortion at high SPL levels
- Smooth frequency response
- Rotatable low and high frequency waveguides for horizontal or vertical orientation
- Steep-slope passive crossover network
- Switchable bi-amp/passive crossover modes
| Frequency Range | 80 Hz to 18 kHz |
|---|---|
| Frequency Response | 90 Hz to 16 kHz |
| Coverage Pattern | 43: 40° x 30°, 64: 60° x 40°, 66: 60° x 60°, 95: 90° x 50° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP, 850 Hz |
| Transducer Power Rating (AES) | LF 400 W, HF 75 W |
| System Power Rating (Passive Mode) | 300 W |
| Maximum SPL (1m) | LF 137 dB-SPL, HF 135 dB SPL |
| System Sensitivity (1w @ 1m) | Passive Mode 109 dB-SPL |
| Nominal Impedance | 8ohms |
×
×
