PD6212/43-WRX | HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 40°X30° COVERAGE PATTERN

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 40°X30° COVERAGE PATTERN
Click image to enlarge

PD6212/43-WRX
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 40°X30° COVERAGE PATTERN

  • UM : EA
  • Estimated Weight: 203.6

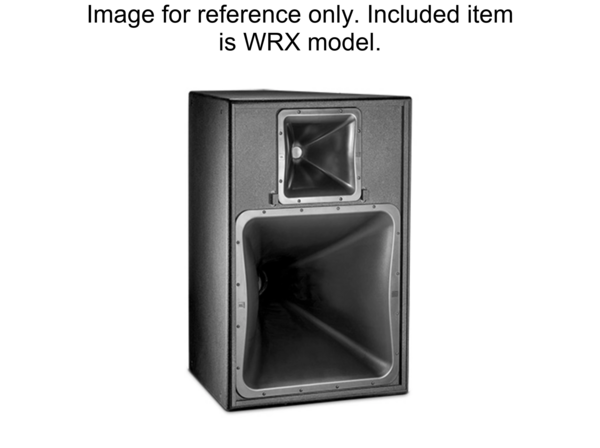

The PD6212/43-WRX is a 12-inch, 2-way horn-loaded loudspeaker featuring a 40° x 30° horn for directional sound projection. It delivers frequency response down to 80 Hz, suitable for standalone use in music or speech applications. For extended low-frequency performance, it can be combined with subwoofers to form a full-range sound system.

This model provides precision directivity control for improved audio pattern management in professional audio installations.

Features:

  • 300 mm (12 in) horn-loaded low frequency driver with high sensitivity and continuous SPL capability
  • Large PT Progressive Transition waveguides for broadband pattern control, low distortion, and smooth frequency response
  • Rotatable low and high frequency waveguide for horizontal or vertical cabinet orientation
  • Steep-slope passive crossover with switchable bi-amp/passive modes
Frequency Range 80 Hz to 18 kHz
Frequency Response 90 Hz to 16 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating LF 400 W (1600 W peak), HF 75 W (300 W peak)
System Power Rating Passive Mode 300 W (1200 W peak)
Maximum SPL (1m) LF 137 dB SPL, HF 135 dB SPL (141 dB peak), Passive Mode 134 dB SPL (140 dB peak)
System Sensitivity (1W @ 1m) Passive Mode 109 dB SPL
Nominal Impedance 8ohms
