PD6212/64-WRC | HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 40° COVERAGE

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 40° COVERAGE
Click image to enlarge

PD6212/64-WRC
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 40° COVERAGE

  • UM : EA
  • Estimated Weight: 157.0

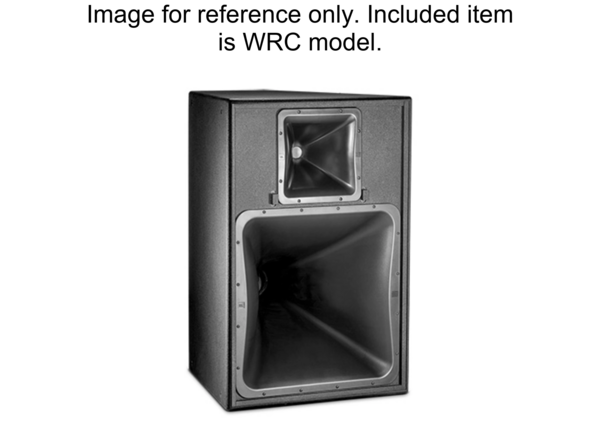

The PD6212/64-WRC is a 12-inch, 2-way horn-loaded loudspeaker featuring a 60° by 40° horn for directional sound projection. It operates with a frequency response extending down to 80 Hz, suitable for applications requiring controlled directivity and high output levels.

This loudspeaker can function independently in music or speech reinforcement systems or be integrated with subwoofers to achieve extended low-frequency performance in full-range audio setups.

Features:

  • 300 mm (12 in) horn-loaded LF driver
  • Large-format HF driver
  • High sensitivity design
  • High continuous SPL capability
  • Large PT Progressive Transition waveguides for broadband pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable low and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover modes
Frequency Range 80 Hz to 18 kHz
Frequency Response 90 Hz to 16 kHz
Coverage Pattern 40° x 30°, 60° x 40°, 60° x 60°, 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating (AES) LF 400 W (1600 W peak), HF 75 W (300 W peak)
System Power Rating 300 W (1200 W peak), 100 hrs passive mode
Maximum SPL (1m) LF 137 dB SPL, HF 135 dB SPL (141 dB peak), Passive Mode 134 dB SPL (140 dB peak)
System Sensitivity 107 dB SPL passive mode
Nominal Impedance 8ohms
