PD6212/66 | HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE

  • MAP: $5,150.00 / EA
  • List Price: $5,150.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE
Click image to enlarge
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE

PD6212/66
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE

  • UM : EA

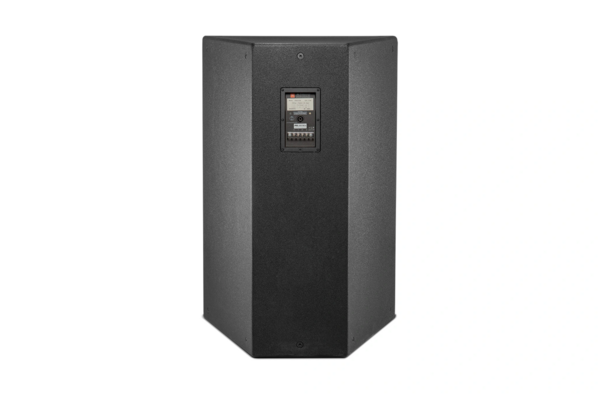

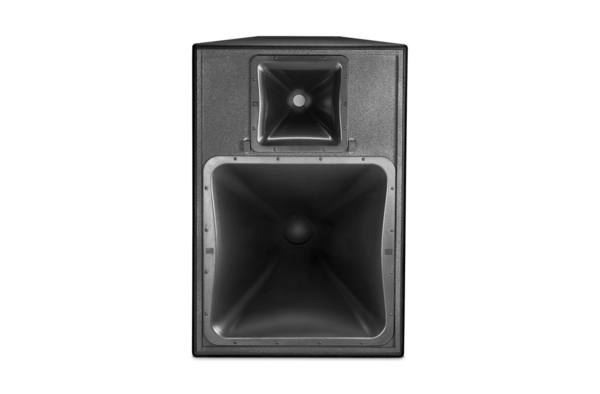

The PD6212/66 is a 12-inch, 2-way horn-loaded loudspeaker featuring a 60° x 60° horn for precision directivity. It operates with a frequency response extending down to 80 Hz. The speaker is suitable for standalone use in music or speech systems or can be combined with subwoofers to achieve extended low-frequency bandwidth in full-range configurations.

Features:

  • 300 mm (12 in) horn-loaded LF driver with high sensitivity and continuous SPL capability
  • Large PT waveguides for broad pattern control and low distortion
  • Rotatable low and high frequency waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover with switchable bi-amp/passive modes
Frequency Range 80 Hz to 18 kHz
Frequency Response 90 Hz to 16 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating LF 400 W (1600 W peak), HF 75 W (300 W peak)
System Power Rating Passive Mode 300 W (1200 W peak)
Maximum SPL (1m) LF 137 dB-SPL, HF 135 dB SPL (141 dB peak), Passive Mode 134 dB SPL (140 dB peak)
System Sensitivity (1w @ 1m) Passive Mode 107 dB-SPL
Nominal Impedance 8ohms
