PD6212/66-WH | HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE

  • MAP: $5,150.00 / EA
  • List Price: $5,150.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE

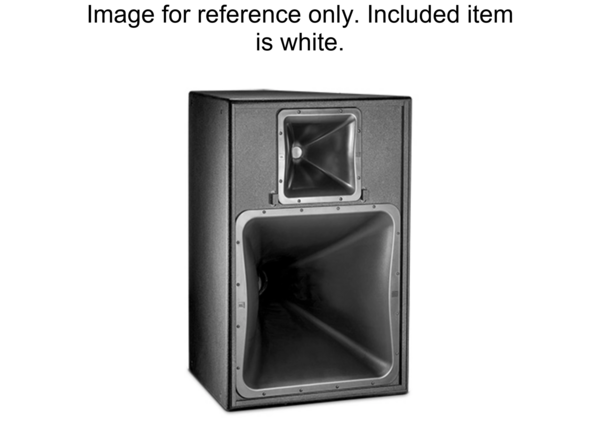

Click image to enlarge

PD6212/66-WH
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE

  • UM : EA

The PD6212/66-WH is a 12-inch, two-way horn-loaded loudspeaker featuring a 60° by 60° horn for controlled directivity. It is designed to provide high output performance with precise pattern control.

The frequency response extends down to 80 Hz, making the loudspeaker suitable for standalone use in music or speech applications. It can also be integrated with subwoofers to form full-range systems with extended low-frequency bandwidth.

Features:

  • 300 mm (12 in) horn-loaded LF driver
  • Large-format HF driver
  • High sensitivity and continuous SPL capability
  • Large PT Progressive Transition waveguides for broadband pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable low and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover modes
Frequency Range 80 Hz to 18 kHz
Frequency Response 90 Hz to 16 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating (AES) LF 400 W (1600 W peak), 2 hrs / 300 W (1200 W peak), 100 hrs; HF 75 W (300 W peak), 2 hrs
System Power Rating Passive Mode 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) LF 137 dB-SPL; HF 135 dB SPL (141 dB peak); Passive Mode 134 dB SPL (140 dB peak)
System Sensitivity (1W @ 1m) Passive Mode 107 dB-SPL
Nominal Impedance 8ohms
