PD6212/66-WRC
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE

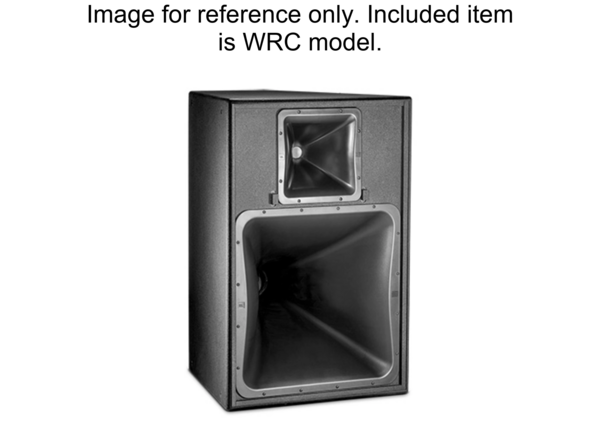

Click image to enlarge
PD6212/66-WRC
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 60° X 60° COVERAGE
- UM : EA
- Estimated Weight: 157.0
The PD6212/66-WRC is a 12-inch two-way horn-loaded loudspeaker featuring a 60° x 60° coverage horn designed for controlled directivity. It operates with a frequency response extending down to 80 Hz, suitable for standalone use in music or speech reinforcement systems.
This loudspeaker can be integrated with subwoofers to form full-range audio systems with extended low-frequency bandwidth. The design emphasizes precise pattern control for enhanced output accuracy in various acoustic environments.
Features:
- 300 mm horn-loaded LF and large-format HF driver with high sensitivity and continuous SPL capability
- Large PT Progressive Transition waveguides for broadband pattern control and low distortion
- Rotatable low and high frequency waveguides for horizontal or vertical orientation
- Steep-slope passive crossover network with switchable bi-amp/passive modes
| Frequency Range (-10dB) | 80 Hz to 18 kHz |
|---|---|
| Frequency Response (±3 dB) | 90 Hz to 16 kHz |
| Coverage Pattern | 60° x 60° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP, 850 Hz |
| Transducer Power Rating (AES) | LF 400 W (1600 W peak), HF 75 W (300 W peak) |
| System Power Rating (Passive Mode) | 300 W (1200 W peak) |
| Maximum SPL (1m) | LF 137 dB, HF 135 dB SPL (141 dB peak) |
| System Sensitivity (1W @ 1m, Passive Mode) | 107 dB SPL |
| Nominal Impedance | 8ohms |
×
