PD6212/95 | HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE
PD6212/95
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE
Click image to enlarge
PD6212/95
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE
- UM : EA

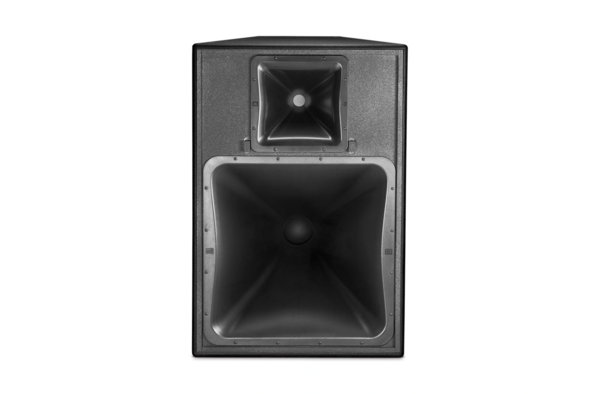

The PD6212/95 is a 12-inch two-way horn-loaded loudspeaker featuring a 90° horizontal by 50° vertical coverage horn. It is engineered for applications requiring controlled directivity and high output levels.
This model supports frequency response down to 80 Hz and can be used independently for music or speech reinforcement or paired with subwoofers to achieve extended full-range audio performance.
Features:
- 300 mm (12 in) horn-loaded low-frequency driver
- Large-format high-frequency driver
- High sensitivity design with high continuous SPL
- Large PT Progressive Transition waveguides for broad pattern control
- Low distortion at high SPL
- Smooth frequency response
- Rotatable low and high frequency waveguide for horizontal or vertical orientation
- Steep-slope passive crossover network
- Switchable bi-amp/passive crossover modes
| Frequency Range | 80 Hz to 18 kHz |
|---|---|
| Frequency Response | 90 Hz to 16 kHz |
| Coverage Pattern | 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP, 850 Hz |
| Transducer Power Rating (AES) | LF 400 W (1600 W peak), HF 75 W (300 W peak) |
| System Power Rating | Passive Mode 300 W (1200 W peak) |
| Maximum SPL (1m) | LF 137 dB-SPL, HF 135 dB SPL (141 dB peak), Passive Mode 134 dB SPL (140 dB peak) |
| System Sensitivity (1W @ 1m) | Passive Mode 106 dB-SPL |
| Nominal Impedance | 8ohms |
×
×
