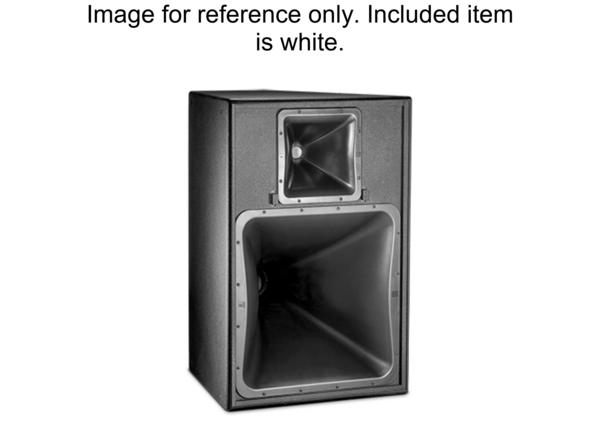

PD6212/95-WH | HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE

  • MAP: $5,150.00 / EA
  • List Price: $5,150.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE
Click image to enlarge

PD6212/95-WH
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE

  • UM : EA

The PD6212/95-WH is a 12-inch two-way horn-loaded loudspeaker featuring a 90° horizontal by 50° vertical horn coverage pattern. It delivers controlled directivity suitable for both speech and music applications. The system provides frequency response extending down to 80 Hz.

Features:

  • 300 mm (12 in) horn-loaded low-frequency driver
  • Large-format high-frequency driver
  • High sensitivity design with high continuous SPL capability
  • Progressive Transition waveguides for broad pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable low and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover modes
Frequency Range 80 Hz to 18 kHz
Frequency Response 90 Hz to 16 kHz
Coverage Pattern 40° x 30°, 60° x 40°, 60° x 60°, 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating (AES) LF 400 W (1600 W peak), HF 75 W (300 W peak)
System Power Rating Passive Mode 300 W (1200 W peak)
Maximum SPL LF 137 dB, HF 135 dB SPL (141 dB peak), Passive 134 dB SPL (140 dB peak)
System Sensitivity Passive Mode 106 dB-SPL (1W @ 1m)
Nominal Impedance 8ohms
