PD6212/95-WRC | HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE
Click image to enlarge

PD6212/95-WRC
HIGH SENSITIVITY TWO-WAY FULL-RANGE LOUDSPEAKER WITH HORN LOADED 12" LF AND 90° X 50° COVERAGE

  • UM : EA
  • Estimated Weight: 180.0

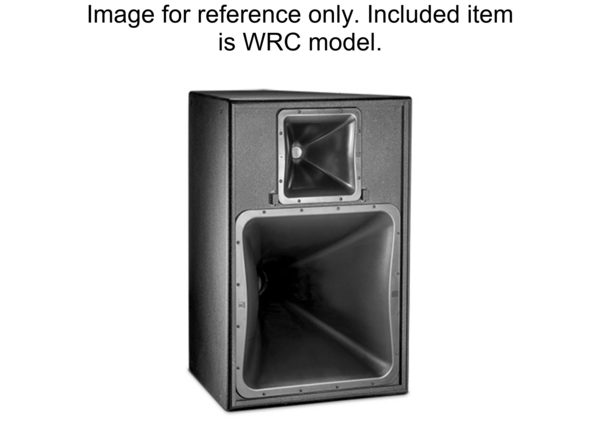

The PD6212/95-WRC is a 12-inch, 2-way horn-loaded loudspeaker featuring a 90° horizontal by 50° vertical horn dispersion pattern. It is designed for applications requiring controlled directivity and high output levels. The speaker’s frequency response extends down to 80 Hz.

Features:

  • 300 mm horn-loaded LF driver
  • Large-format HF driver
  • High sensitivity design
  • High continuous SPL capability
  • Progressive Transition waveguides for broadband pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable low and high frequency waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover modes
Frequency Range 80 Hz to 18 kHz
Frequency Response 90 Hz to 16 kHz
Coverage Pattern 40° x 30°, 60° x 40°, 60° x 60°, 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 850 Hz
Transducer Power Rating (AES) LF 400 W (1600 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs; HF 75 W (300 W peak), 2 hrs
System Power Rating Passive Mode 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) LF 137 dB-SPL; HF 135 dB SPL (141 dB peak); Passive Mode 134 dB SPL (140 dB peak)
System Sensitivity (1W @ 1m) Passive Mode 106 dB-SPL
Nominal Impedance 8ohms
