PD6322/43 | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.

  • MAP: $8,150.00 / EA
  • List Price: $8,150.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.
Click image to enlarge
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.

PD6322/43
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.

  • UM : EA

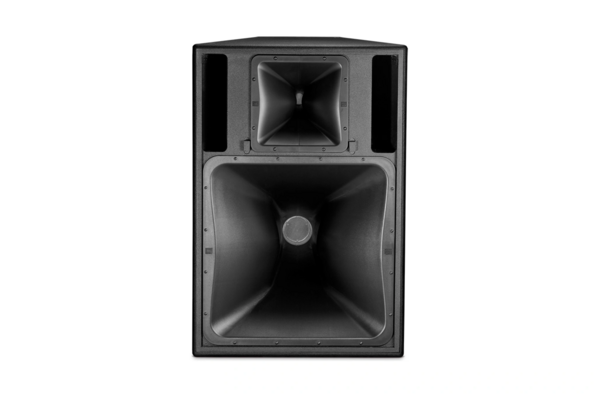

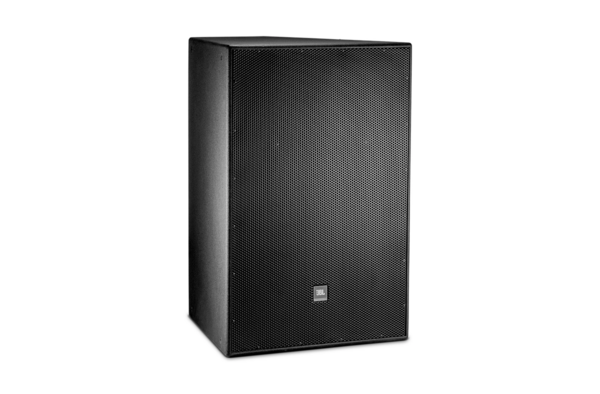

The PD6322/43 is a dual 12-inch, three-way, horn-loaded loudspeaker featuring a 40° horizontal by 30° vertical horn pattern. It provides full-range audio coverage with frequency extension down to 40 Hz.

Features:

  • Two high power 300 mm (12 in) transducers for low frequency extension to 40 Hz
  • High power CMCD midrange compression driver for high sensitivity and low distortion
  • Large format neodymium HF driver for clear high frequency projection
  • Large PT Progressive Transition waveguides for consistent pattern control and smooth frequency response
  • Rotatable mid and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive mid-high crossover with switchable tri-amp/bi-amp modes
Frequency Range 41 Hz to 17 kHz
Frequency Response 49 Hz to 15 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Tri-amp / Bi-amp switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES) LF 1600 W, MF 350 W, HF 75 W
System Power Rating LF 1200 W, MF/HF 300 W
Maximum SPL (1m) LF 128 dB cont avg, MF 137 dB cont avg, HF 135 dB cont avg, Passive 136 dB cont avg
System Sensitivity (1w @ 1m) 111 dB SPL (mid/high section only)

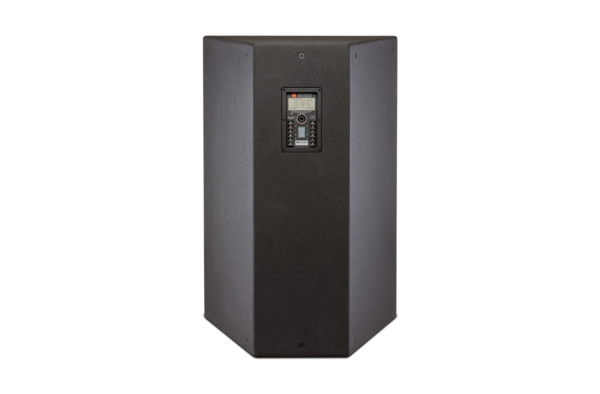

Input Connectors Neutrik Speakon NL8, CE-compliant barrier strip terminals
