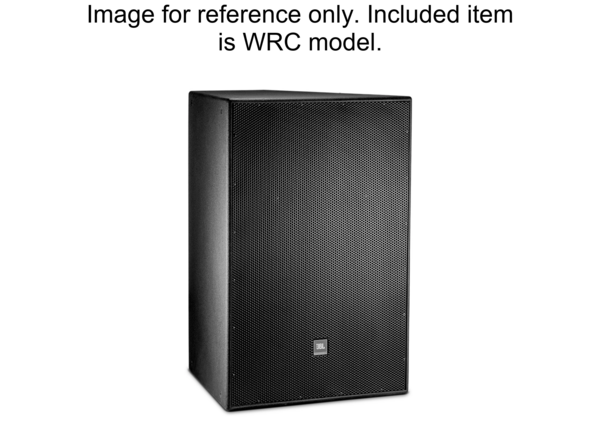

Click image to enlarge
PD6322/43-WRC
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.
- UM : EA
- Estimated Weight: 183.0
The PD6322/43-WRC is a dual 12-inch, three-way horn-loaded loudspeaker featuring a 40° horizontal by 30° vertical horn coverage pattern. It is designed for full-range audio reproduction with low-frequency extension down to 40 Hz.
Features:
- Two high power 300 mm (12 in) transducers for low frequency extension to 40 Hz
- High power CMCD Cone Midrange Compression Driver with high sensitivity and low distortion
- Large format neodymium HF driver for clear high frequency projection
- Large PT Progressive Transition waveguides for consistent pattern control and smooth frequency response
- Rotatable mid and high frequency waveguides for horizontal or vertical cabinet orientation
- Steep-slope passive mid-high crossover network with switchable tri-amp/bi-amp modes
| Frequency Range | 41 Hz to 17 kHz |
|---|---|
| Frequency Response | 49 Hz to 15 kHz |
| Coverage Pattern | 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50° |
| Crossover Modes | Tri-amp / Bi-amp switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP at 1.5 kHz |
| Transducer Power Rating (AES) | LF 1600 W (6400 W peak), MF 350 W (1400 W peak), HF 75 W (300 W peak) |
| System Power Rating | LF 1200 W (4800 W peak), MF/HF 300 W (1200 W peak) |
| Maximum SPL (1m) | Tri-amp mode LF 128 dB, MF 137 dB, HF 135 dB; Passive mode 136 dB |
| System Sensitivity (1w @ 1m) | Passive Mode 111 dB-SPL (mid/high) |
| Nominal Impedance | 4ohms (2 x 8ohms in parallel) |
×
