PD6322/43-WRX | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.

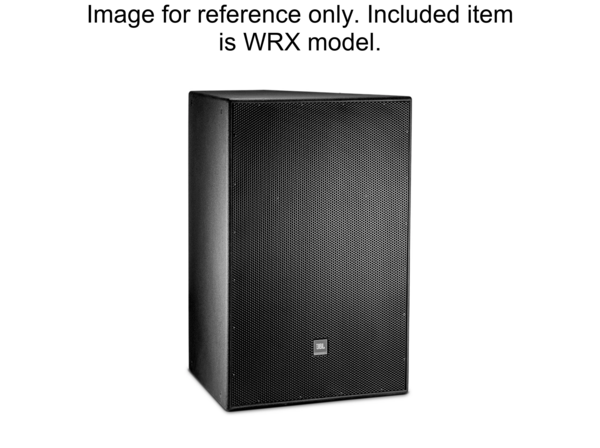

Click image to enlarge

PD6322/43-WRX
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 40º X 30º COVERAGE PATTERN.

  • UM : EA
  • Estimated Weight: 240.0

The PD6322/43-WRX is a dual 12-inch, three-way, horn-loaded loudspeaker featuring a 40° x 30° horn for controlled directivity. It provides full-range audio reproduction with low frequency extension down to 40 Hz. The design supports high output sensitivity and precise pattern control, suitable for use in standalone applications requiring detailed music or speech reinforcement.

Features:

  • Two high power 300 mm (12 in) transducers for low frequency extension to 40 Hz
  • High power CMCD Cone Midrange Compression Driver with high sensitivity and low distortion
  • Large format neodymium HF driver for clear high frequency projection
  • Large PT Progressive Transition waveguides for consistent pattern control and smooth frequency response
  • Rotatable mid and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive mid-high crossover network with switchable tri-amp/bi-amp modes
Frequency Range 41 Hz to 17 kHz
Frequency Response 49 Hz to 15 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Tri-amp / Bi-amp switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP at 1.5 kHz
Transducer Power Rating (AES) LF 1600 W, MF 350 W, HF 75 W
System Power Rating LF 1200 W, MF/HF 300 W
Maximum SPL (1m) Tri-amp mode LF 128 dB, MF 137 dB, HF 135 dB; Passive mode 136 dB
System Sensitivity (1W @ 1m) Passive mode 111 dB-SPL
Nominal Impedance 4ohms
