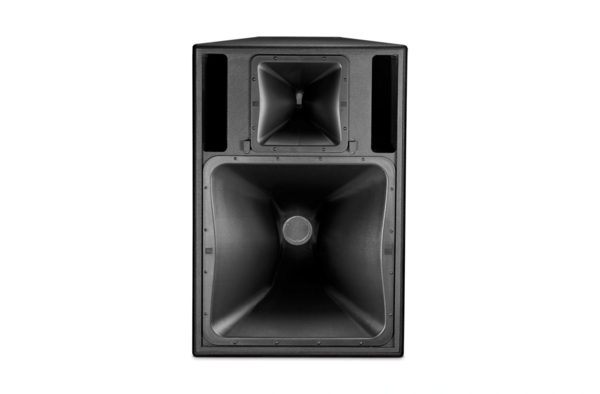

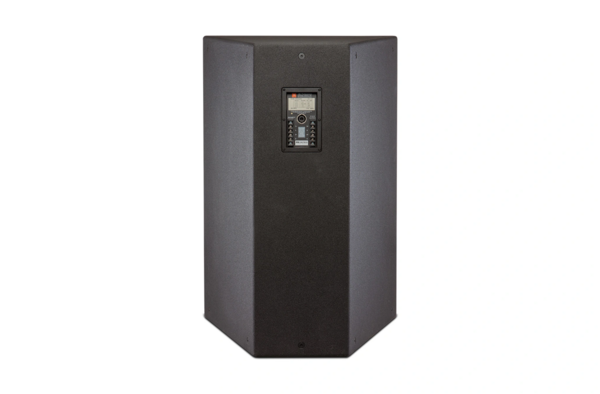

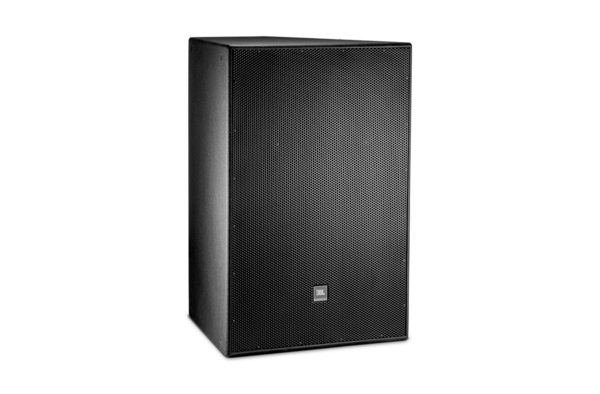

PD6322/64-H | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN
PD6322/64-H
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN
Click image to enlarge
PD6322/64-H
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN
- UM : EA
The PD6322/64-H is a dual 12-inch, three-way, horn-loaded loudspeaker featuring a 60° horizontal by 40° vertical coverage horn. It delivers full-range audio with low-frequency extension down to 40 Hz. The design provides controlled directivity and high output sensitivity, suitable for standalone use in music or speech reinforcement systems demanding precise pattern control and extended low-frequency response.
Features:
- Two 300 mm transducers for low frequency extension to 40 Hz
- High power CMCD cone midrange compression driver with high sensitivity and low distortion
- Large format neodymium HF driver for clear high frequency projection
- Large PT Progressive Transition waveguides for consistent pattern control and low distortion
- Rotatable mid and high frequency waveguides for horizontal or vertical orientation
- Steep-slope passive mid-high crossover with switchable tri-amp/bi-amp modes
| Frequency Range | 41 Hz to 17 kHz |
|---|---|
| Frequency Response | 49 Hz to 15 kHz |
| Coverage Pattern | 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50° |
| Crossover Modes | Tri-amp / Bi-amp switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP, 1.5 kHz |
| Transducer Power Rating (AES) | LF 1600 W, MF 350 W, HF 75 W |
| System Power Rating | LF 1200 W, MF/HF 300 W |
| Maximum SPL (1m) | Tri-amp LF 128 dB, MF 135 dB, HF 135 dB; Passive 135 dB |
| System Sensitivity (1W @ 1m) | 110 dB SPL (mid/high section) |
| Nominal Impedance | 4ohms (2 x 8ohms parallel) |
×
×
×
