PD6322/64-WH | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN.
PD6322/64-WH
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN.

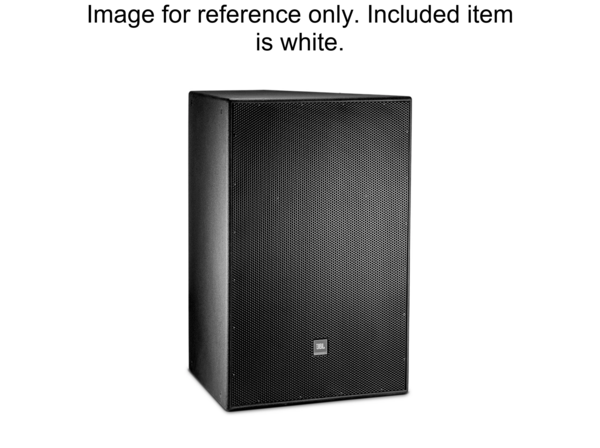

Click image to enlarge
PD6322/64-WH
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN.
- UM : EA
The PD6322/64-WH is a dual 12-inch, three-way horn-loaded loudspeaker featuring a 60° x 40° horn. It is designed for full-range audio applications requiring precise directivity and high output sensitivity. The speaker provides low-frequency extension down to 40 Hz.
Features:
- Two 300 mm (12 in) transducers for low frequency extension to 40 Hz
- High power CMCD cone midrange compression driver for high sensitivity and low distortion
- Large neodymium HF driver for clear high frequency projection
- PT Progressive Transition waveguides for consistent pattern control and smooth frequency response
- Rotatable mid and high frequency waveguides for horizontal or vertical orientation
- Steep-slope passive mid/high crossover with switchable tri-amp/bi-amp modes
| Frequency Range | 41 Hz to 17 kHz |
|---|---|
| Frequency Response | 49 Hz to 15 kHz |
| Coverage Pattern | 43: 40° x 30°, 64: 60° x 40°, 66: 60° x 60°, 95: 90° x 50° |
| Crossover Modes | Tri-amp / Bi-amp (passive mid-high) switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP, 1.5 kHz |
| Transducer Power Rating (AES) | LF: 1600 W, MF: 350 W, HF: 75 W |
| System Power Rating | LF: 1200 W, MF/HF: 300 W |
| Maximum SPL (1m) | Tri-amp LF: 128 dB, MF: 135 dB, HF: 135 dB; Passive: 135 dB |
| System Sensitivity (1W @ 1m) | Passive Mode 110 dB SPL (mid/high section) |
| Nominal Impedance | 4ohms |
×
