PD6322/64-WRC | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN.

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN.

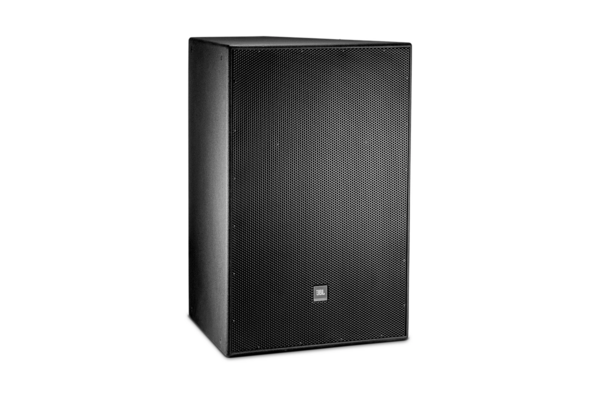

Click image to enlarge

PD6322/64-WRC
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 40° COVERAGE PATTERN.

  • UM : EA
  • Estimated Weight: 190.0

The PD6322/64-WRC is a dual 12-inch, three-way, horn-loaded loudspeaker featuring a 60° horizontal by 40° vertical horn. It is designed for full-range audio reproduction with a low-frequency extension down to 40 Hz. The speaker provides controlled directivity and high output sensitivity, suitable for standalone use in music or speech sound reinforcement systems.

Features:

  • Two high power 300 mm (12 in) transducers for low frequency extension to 40 Hz
  • High power CMCD Cone Midrange Compression Driver with high sensitivity, continuous SPL, low distortion, extended bandwidth
  • Large format neodymium HF driver for clear high frequency projection
  • Large PT Progressive Transition waveguides for consistent pattern control, low distortion, smooth frequency response
  • Rotatable mid and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive mid-high crossover network with switchable tri-amp/bi-amp modes
Frequency Range (-10 dB) 41 Hz to 17 kHz
Frequency Response (±3 dB) 49 Hz to 15 kHz
Coverage Pattern 43: 40° x 30°, 64: 60° x 40°, 66: 60° x 60°, 95: 90° x 50°
Crossover Modes Tri-amp / Bi-amp switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES) LF 1600 W, MF 350 W, HF 75 W
System Power Rating LF 1200 W, MF/HF 300 W
Maximum SPL (1m) Tri-amp LF 128 dB, MF 135 dB, HF 135 dB; Passive 135 dB
System Sensitivity (1W @ 1m) Passive Mode 110 dB
Nominal Impedance 4ohms; MF Driver 8ohms; HF Driver 8ohms
