PD6322/66 | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.

  • MAP: $6,100.00 / EA
  • List Price: $6,100.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.
Click image to enlarge
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.

PD6322/66
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.

  • UM : EA

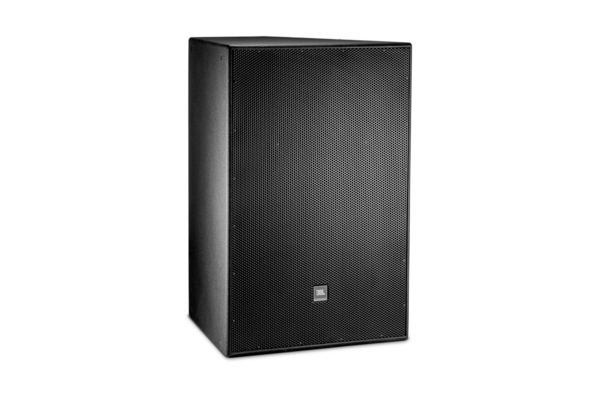

The PD6322/66 is a dual 12-inch, three-way horn-loaded loudspeaker featuring a 60° x 60° coverage pattern. It integrates precision directivity technology to provide controlled sound dispersion. The speaker supports full-range audio output with low-frequency extension down to 40 Hz.

Features:

  • Two 300 mm (12 in) transducers for low frequency extension to 40 Hz
  • High power CMCD Cone Midrange Compression Driver with high sensitivity and low distortion
  • Large format neodymium HF driver for clear high frequency projection

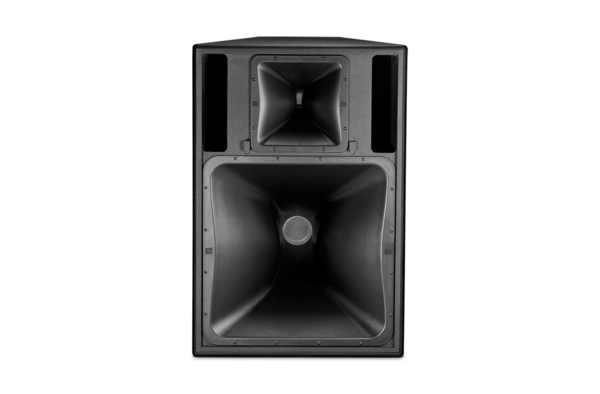

  • PT Progressive Transition waveguides for consistent pattern control and smooth frequency response
  • Rotatable mid and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive mid-high crossover network with switchable tri-amp/bi-amp modes
Frequency Range (-10dB) 41 Hz to 17 kHz
Frequency Response (±3 dB) 49 Hz to 15 kHz
Coverage Pattern 60° x 60°
Crossover Modes Tri-amp / Bi-amp (passive mid-high) switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES) LF 1600 W (6400 W peak), MF 350 W (1400 W peak), HF 75 W (300 W peak)
System Power Rating LF 1200 W (4800 W peak), MF/HF 300 W (1200 W peak)
Maximum SPL (1m) Tri-amp LF 128 dB, MF 135 dB, HF 135 dB; Passive 135 dB
System Sensitivity (1W @ 1m) Passive Mode 110 dB-SPL (mid/high section only)

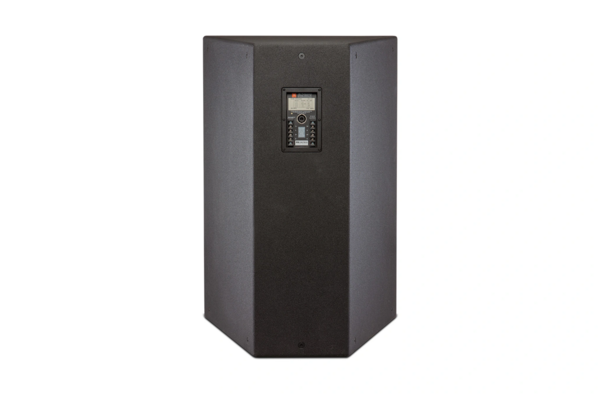

Input Connectors Neutrik Speakon NL8 and CE-compliant barrier strip terminals
