PD6322/66-WH | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.

  • MAP: $6,100.00 / EA
  • List Price: $6,100.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.

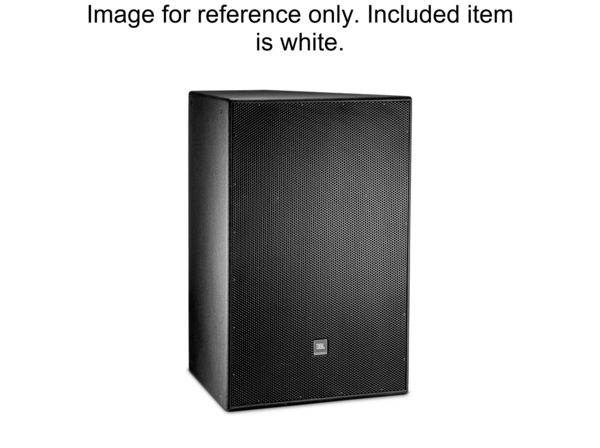

Click image to enlarge

PD6322/66-WH
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.

  • UM : EA

The PD6322/66-WH is a dual 12-inch, three-way horn-loaded loudspeaker featuring a 60° x 60° coverage horn. It is designed for full-range audio applications requiring high output sensitivity and precise directivity control. The speaker provides low-frequency extension down to 40 Hz, suitable for music or speech systems demanding accurate pattern control and extended bass response.

Features:

  • Two 300 mm (12 in) transducers for low frequency extension to 40 Hz
  • High power CMCD Cone Midrange Compression Driver with high sensitivity and low distortion
  • Large format neodymium HF driver for clear high frequency projection
  • Large PT Progressive Transition waveguides for consistent pattern control and smooth frequency response
  • Rotatable mid and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive mid-high crossover network with switchable tri-amp/bi-amp modes
Frequency Range 41 Hz to 17 kHz
Frequency Response 49 Hz to 15 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Tri-amp / Bi-amp switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES) LF 1600 W, MF 350 W, HF 75 W
System Power Rating LF 1200 W, MF/HF 300 W
Maximum SPL (1m) Tri-amp LF 128 dB, MF 135 dB, HF 135 dB; Passive 135 dB
System Sensitivity (1w @ 1m) Passive Mode 110 dB-SPL
Nominal Impedance 4ohms (2 x 8ohms parallel)
