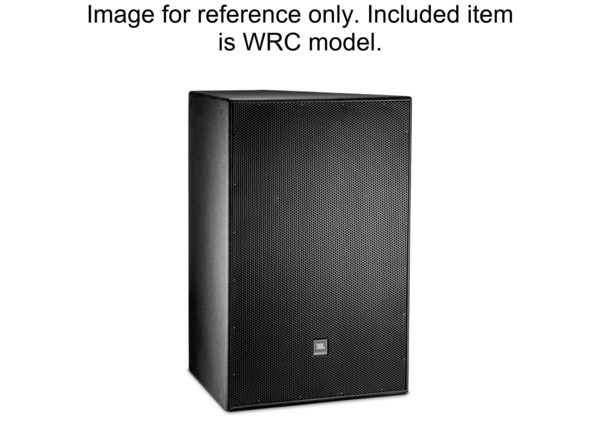

PD6322/66-WRC | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.
PD6322/66-WRC
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.
Click image to enlarge
PD6322/66-WRC
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 60° X 60° COVERAGE PATTERN.
- UM : EA
- Estimated Weight: 183.0
The PD6322/66-WRC is a dual 12-inch, three-way horn-loaded loudspeaker featuring a 60° by 60° symmetric coverage horn. It is designed to deliver full-range audio with directivity control suitable for applications requiring precise pattern control and high output sensitivity. The loudspeaker provides low frequency extension down to 40 Hz.
Features:
- Two high power 300 mm (12 in) transducers for low frequency extension to 40 Hz
- High power CMCD Cone Midrange Compression Driver for high sensitivity and continuous SPL with low distortion
- Large format neodymium HF driver for clear high frequency projection
- Large PT Progressive Transition waveguides for consistent pattern control and smooth frequency response
- Rotatable mid and high frequency waveguides for horizontal or vertical orientation
- Steep-slope passive mid/high crossover network with switchable tri-amp/bi-amp modes
| Frequency Range | 41 Hz to 17 kHz |
|---|---|
| Frequency Response | 49 Hz to 15 kHz |
| Coverage Pattern | 40° x 30°, 60° x 40°, 60° x 60°, 90° x 50° |
| Crossover Modes | Tri-amp, Bi-amp (passive mid-high) switchable |
| Passive Crossover | 6th order Linkwitz-Riley HP & LP, 1.5 kHz |
| Transducer Power Rating (AES) | LF 1600 W, MF 350 W, HF 75 W |
| System Power Rating | LF 1200 W, MF/HF 300 W |
| Maximum SPL (1m) | Tri-amp LF 128 dB, MF 135 dB, HF 135 dB; Passive 135 dB |
| System Sensitivity (1w @ 1m) | Passive Mode 110 dB-SPL |
| Nominal Impedance | 4ohms |
×
