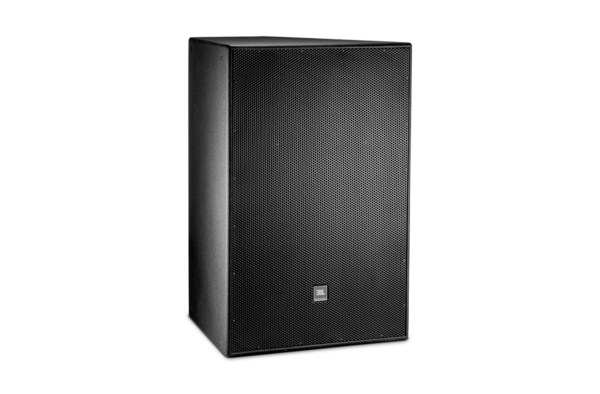

PD6322/95 | HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.

  • MAP: $6,100.00 / EA
  • List Price: $6,100.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.
Click image to enlarge
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.

PD6322/95
HIGH OUTPUT THREE-WAY FULL-RANGE LOUDSPEAKER WITH 12" LF, 8" MF AND 90° X 50° COVERAGE PATTERN.

  • UM : EA
  • Estimated Weight: 170.0

The PD6322/95 is a dual 12-inch, three-way horn-loaded loudspeaker featuring a 90° x 50° horn for controlled directivity. It provides full-range audio output with low-frequency extension down to 40 Hz. The design supports applications requiring high output sensitivity and precise pattern control, suitable for standalone use in music or speech reinforcement systems.

Features:

  • Two high power 300 mm (12 in) transducers for low frequency extension to 40 Hz
  • High power CMCD Cone Midrange Compression Driver with high sensitivity, continuous SPL, low distortion, extended bandwidth, and improved phase coherence
  • Large format neodymium HF driver for clear high frequency projection

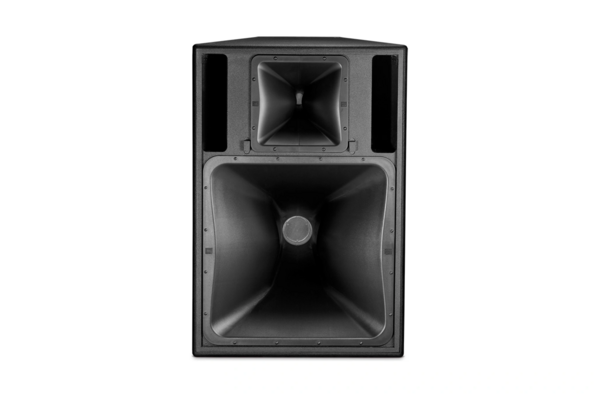

  • Large PT Progressive Transition waveguides for consistent pattern control, low distortion, and smooth frequency response
  • Rotatable mid and high frequency waveguides for horizontal or vertical orientation
  • Steep-slope passive mid high crossover network with switchable tri-amp/bi-amp modes
Frequency Range 41 Hz to 17 kHz
Frequency Response 49 Hz to 15 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°

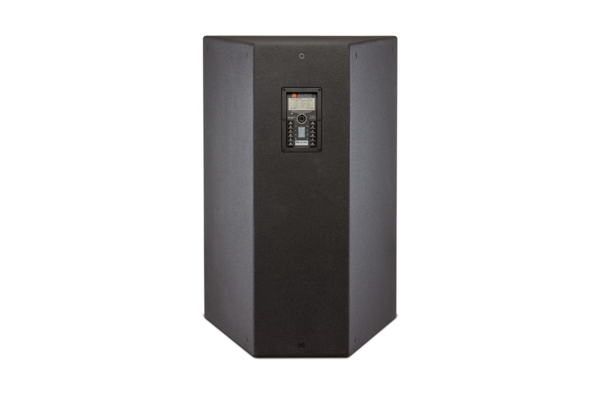

Crossover Modes Tri-amp / Bi-amp switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES) LF 1600 W, MF 350 W, HF 75 W
System Power Rating LF 1200 W, MF/HF 300 W
Maximum SPL (1m) Tri-amp LF 128 dB; MF 134 dB; HF 133 dB; Passive 134 dB
System Sensitivity (1W @ 1m) Passive Mode 109 dB-SPL
Nominal Impedance 4ohms
