PD743I-215-WRC
VERY HIGH OUTPUT FULL RANGE LOUDSPEAKER SYSTEM, WEATHER PROTECTION SYSTEM

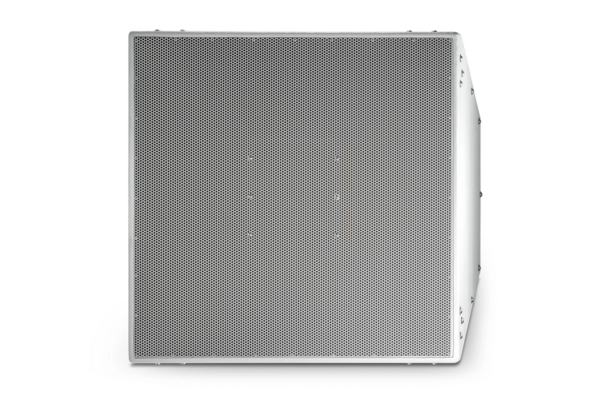

Click image to enlarge
PD743I-215-WRC
VERY HIGH OUTPUT FULL RANGE LOUDSPEAKER SYSTEM, WEATHER PROTECTION SYSTEM
- UM : EA
The PD743I-215-WRC is a dual 15-inch, 3-way, full-range horn-loaded loudspeaker featuring a 40° horizontal by 30° vertical coverage horn. It delivers a continuous sound pressure level (SPL) exceeding 104 dB at a distance of 50 meters (165 feet).
This module is designed for sound reinforcement applications requiring extended throw distances and can be deployed individually or in clusters with other PD series modules as part of a distributed audio system.
Features:
- 40° by 30° coverage pattern
- IFS Interference Free Summation dual HF driver module increases output by 6 dB
- Dual 2432H compression drivers with 3” diaphragms
- Dual CMCD-82H 8” horn-loaded cone mid-range drivers provide 6 dB greater output
- Dual 15” low-frequency Differential Drive dual voice coil dual magnetic gap woofers
- Pattern control maintained below 400 Hz
- Co-axial mid/high-frequency module layout improves arrayability and minimizes size
- Integrated rigging system simplifies array design and construction
| Frequency Range (-10dB) | 36.5 Hz to 19.5 kHz |
|---|---|
| Frequency Response (±3 dB) | 42 Hz - 18.5 kHz |
| Coverage Pattern | 40° x 30° |
| Directivity Index (DI) | 16 dB |
| System Sensitivity (1w @ 1m) | LF: 103 dB SPL; Passive Mid-High: 111 dB SPL |
| Maximum SPL (1m) | LF - 141 dB Peak; MHF - 143 dB Peak |
| Transducer Power Rating (AES) | LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak) |
| Crossover | Bi-Amp with passive mid/high crossover (Tri-Amp optional) |
| Crossover Frequencies | 220 Hz, 1.2 kHz |
| DSP | Custom DSP for Crown ITHD and IT4x3500HD amplifiers |
×
×
