PD743I-215-WRX | VERY HIGH OUTPUT FULL RANGE LOUDSPEAKER SYSTEM, EXTREME WEATHER PROTECTION SYSTEM

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
VERY HIGH OUTPUT FULL RANGE LOUDSPEAKER SYSTEM, EXTREME WEATHER PROTECTION SYSTEM
Click image to enlarge

PD743I-215-WRX
VERY HIGH OUTPUT FULL RANGE LOUDSPEAKER SYSTEM, EXTREME WEATHER PROTECTION SYSTEM

  • UM : EA

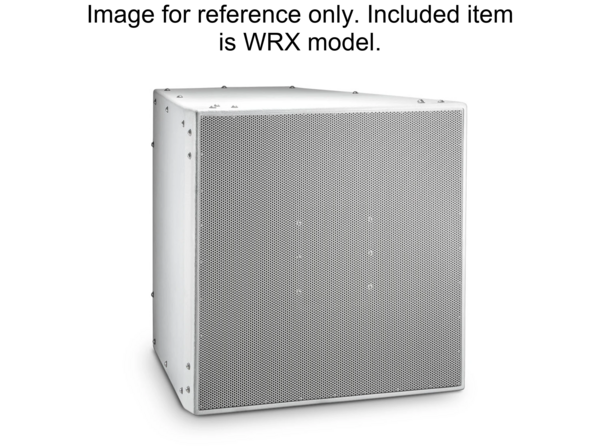

PD743I-215-WRX is a dual 15-inch, 3-way, full-range horn-loaded loudspeaker featuring a 40° x 30° horn. It delivers sound reinforcement over extended distances with a single module capable of producing over 104 dB SPL (continuous) at 50 meters (165 feet).

This model is designed for use individually or in clusters with other PD series modules, supporting scalable distributed sound system configurations.

Features:

  • 40° by 30° coverage pattern, symmetrical frontal dimensions for horizontal or vertical orientation
  • IFS Interference Free Summation dual HF driver module eliminates destructive interference, increases output by 6 dB
  • Dual 2432H compression drivers with 3” diaphragms
  • Dual CMCD-82H 8” horn-loaded cone mid-range drivers providing 6 dB greater output
  • Dual 15” low-frequency Differential Drive dual voice coil, dual magnetic gap woofers
  • Pattern control maintained below 400 Hz
  • Co-axial mid/high-frequency module layout for improved arrayability and minimized size
  • Integrated rigging system simplifying array design and construction
Frequency Range (-10dB) 36.5 Hz to 19.5 kHz
Frequency Response (±3 dB) 42 Hz - 18.5 kHz
Coverage Pattern 40° x 30°
Directivity Index (DI) 16 dB
System Sensitivity (1W @ 1m) LF: 103 dB SPL; Passive Mid-High: 111 dB SPL
Maximum SPL (1m) LF - 141 dB Peak; MHF - 143 dB Peak
Transducer Power Rating (AES) LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak)
Crossover Bi-Amp with passive mid/high crossover (Tri-Amp optional)
Crossover Frequencies 220 Hz, 1.2 kHz
DSP Custom DSP for Crown ITHD and IT4x3500HD amplifiers
