PD764I-215-WRX
VERY HIGHT OUTPUT FULL RANGE LOUDSPEAKER SYSTEM, EXTREME WEATHER PROTECTION SYSTEM
Click image to enlarge
PD764I-215-WRX
VERY HIGHT OUTPUT FULL RANGE LOUDSPEAKER SYSTEM, EXTREME WEATHER PROTECTION SYSTEM
- UM : EA

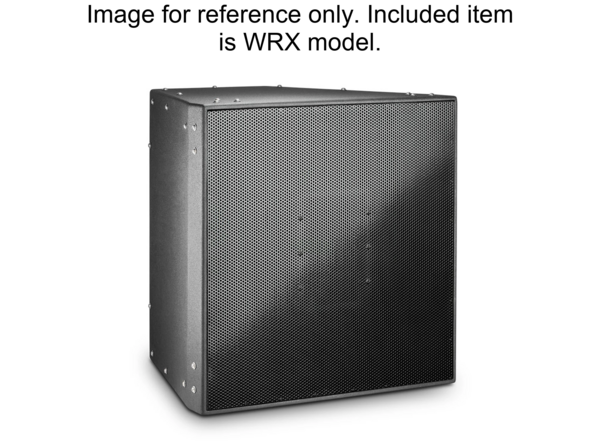

PD764I-215-WRX is a dual 15-inch, 3-way full-range horn-loaded speaker featuring a 60° horizontal by 40° vertical horn dispersion pattern. The speaker is designed for sound reinforcement applications requiring extended throw distances.
This model delivers continuous sound pressure levels exceeding 104 dB SPL at a distance of 50 meters (165 feet). PD764I-215-WRX units can be deployed individually or configured in clusters with other modules from the PD series for distributed audio systems.
Features:
- 60° by 40° coverage pattern
- IFS Interference Free Summation dual HF driver module
- Dual 2432H compression drivers with 3” diaphragms
- Dual CMCD-82H 8” horn loaded cone mid-range drivers
- Dual 15” low-frequency Differential Drive dual voice coil woofers
- Pattern control below 400 Hz
- Co-axial mid/high-frequency module layout
- Integrated rigging system
| Frequency Range | 36.5 Hz to 19.5 kHz |
|---|---|
| Frequency Response (±3 dB) | 41.5 Hz - 18.5 kHz |
| Coverage Pattern | 60° x 40° |
| Directivity Index | 16 dB |
| System Sensitivity (1w @ 1m) | LF: 103 dB SPL; Passive Mid-High: 111 dB SPL |
| Maximum SPL (1m) | LF - 141 dB Peak; MHF - 143 dB Peak |
| Transducer Power Rating (AES) | LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak) |
| Crossover | Bi-Amp with passive mid/high crossover (Tri-Amp optional) |
| Crossover Frequencies | 220 Hz, 1.2 kHz |
| DSP | Custom DSP for Crown ITHD and IT4x3500HD amplifiers |
×
