VERY HIGH OUTPUT MID-HIGH LOUDSPEAKER SYSTEM,WEATHER PROTECTION SYSTEM
Click image to enlarge

PD764I-WRC
VERY HIGH OUTPUT MID-HIGH LOUDSPEAKER SYSTEM,WEATHER PROTECTION SYSTEM

  • UM : EA

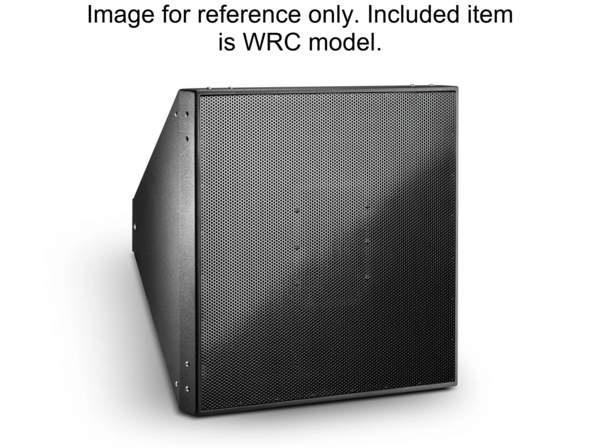

The PD764I-WRC is a dual 8-inch, 2-way horn-loaded loudspeaker featuring a 60° x 40° directivity horn. It delivers continuous sound pressure levels exceeding 104 dB SPL at a distance of 50 meters (165 feet). The design supports use as standalone units or combined in clusters within distributed sound systems.

Features:

  • 60° by 40° coverage pattern
  • IFS interference free summation dual HF driver module
  • Dual 2432H compression drivers with 3” diaphragms
  • Dual CMCD-82H 8” horn loaded cone mid-range drivers
  • Pattern control maintained below 400 Hz
  • Co-axial mid/high-frequency module layout
  • Integrated rigging system
Frequency Range 200 Hz to 19.5 kHz
Frequency Response 230 Hz to 18.5 kHz
Coverage Pattern 60° x 40°
Directivity Index 13 dB
System Sensitivity 110 dB SPL (1W @ 1m)
Maximum SPL 142 dB Peak (1m)
Transducer Power Rating 400 W AES (1600 W Peak)
Crossover Frequency 1.2 kHz
DSP Custom DSP for Crown ITHD and IT4x3500HD amplifiers
Nominal Impedance MF 4ohms, HF 16ohms
