VERY HIGH OUTPUT MID-HIGH LOUDSPEAKER SYSTEM, EXTREME WEATHER PROTECTION SYSTEM
Click image to enlarge

PD764I-WRX
VERY HIGH OUTPUT MID-HIGH LOUDSPEAKER SYSTEM, EXTREME WEATHER PROTECTION SYSTEM

  • UM : EA

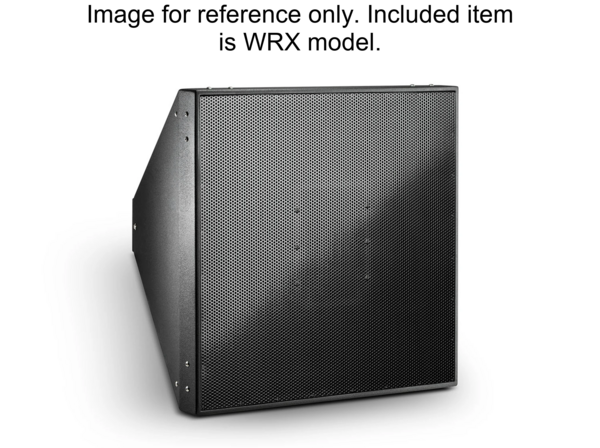

The PD764I-WRX is a dual 8-inch, 2-way horn-loaded loudspeaker featuring a 60° horizontal by 40° vertical horn directivity. It is designed for sound reinforcement applications requiring extended throw distances. The speaker delivers a continuous sound pressure level (SPL) exceeding 104 dB at 50 meters (165 feet).

This model can be utilized individually or in clusters with other PD series modules for distributed sound systems. The horn-loaded design enhances directional control and output efficiency in professional audio installations.

Features:

  • 60° by 40° Coverage Pattern
  • IFS Interference Free Summation dual HF driver module
  • Dual 2432H compression drivers with 3” diaphragms
  • Dual CMCD-82H 8” horn loaded cone mid-range drivers
  • Pattern control below 400 Hz
  • Co-axial mid/high-frequency module layout
  • Integrated rigging system
Frequency Range 200 Hz to 19.5 kHz
Frequency Response 230 Hz - 18.5 kHz
Coverage Pattern 60° x 40°
Directivity Index 13 dB
System Sensitivity 110 dB SPL (1W @ 1m, Passive Mid-High)
Maximum SPL 142 dB Peak (1m, MHF)
Transducer Power Rating 400 W AES (1600 W Peak, MHF)
Crossover Frequency 1.2 kHz
DSP Custom for Crown ITHD and IT4x3500HD amplifiers
Nominal Impedance Mid-Frequency 4ohms, High-Frequency 16ohms
