PI5660W | POWER OVER ETHERNET ULTRA INJECTOR

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times

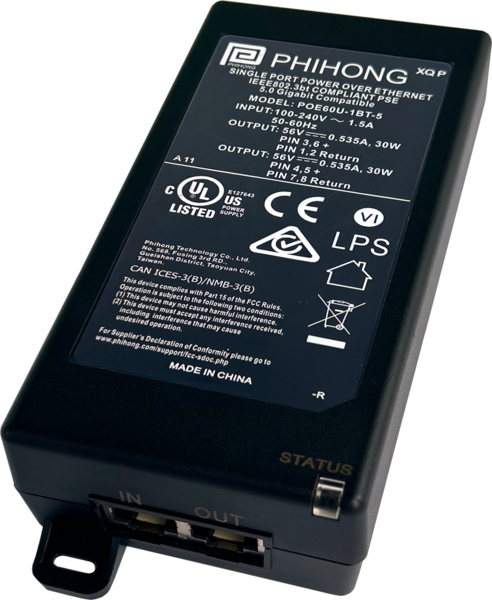

POWER OVER ETHERNET ULTRA INJECTOR
Click image to enlarge

PI5660W
POWER OVER ETHERNET ULTRA INJECTOR

  • UM : EA
  • Estimated Weight: 2.0

IEEE 802.3bt 56V 60W Power over Ethernet (PoE) 1-Port Midspan Injector

Features:

  • Provides regulated 56VDC and 60W at 1.07A from a 100–240VAC, 47–63 Hz source
  • 6', 18 AWG, NEMA 5-15P to IEC 60320 C-13 line cord included
  • Maximum power consumption of 2.5A (RMS) for 90VAC and 1.2A (RMS) for 240VAC
  • Entire unit measures 6.43" × 2.56" × 1.42"
  • UL and C-UL listed
  • IEC320 3-pin inlet input connector
  • RJ45 output connector
  • Pins 3, 6, 4, and 5 are positive
  • Pins 1, 2, 7, and 8 are negative
