PIC-4744 | IFB CENTRAL CONTROLLER:  ENCORE IFB CONTROLLER ROUTER FOR 4 TALENT POSITION OUTPUTS IN 1RU

  • MAP: $2,105.00 / EA
  • List Price: $2,105.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
IFB CENTRAL CONTROLLER:  ENCORE IFB CONTROLLER ROUTER FOR 4 TALENT POSITION OUTPUTS IN 1RU
IFB CENTRAL CONTROLLER:  ENCORE IFB CONTROLLER ROUTER FOR 4 TALENT POSITION OUTPUTS IN 1RU
Click image to enlarge
IFB CENTRAL CONTROLLER:  ENCORE IFB CONTROLLER ROUTER FOR 4 TALENT POSITION OUTPUTS IN 1RU
IFB CENTRAL CONTROLLER:  ENCORE IFB CONTROLLER ROUTER FOR 4 TALENT POSITION OUTPUTS IN 1RU

PIC-4744
IFB CENTRAL CONTROLLER:  ENCORE IFB CONTROLLER ROUTER FOR 4 TALENT POSITION OUTPUTS IN 1RU

  • UM : EA

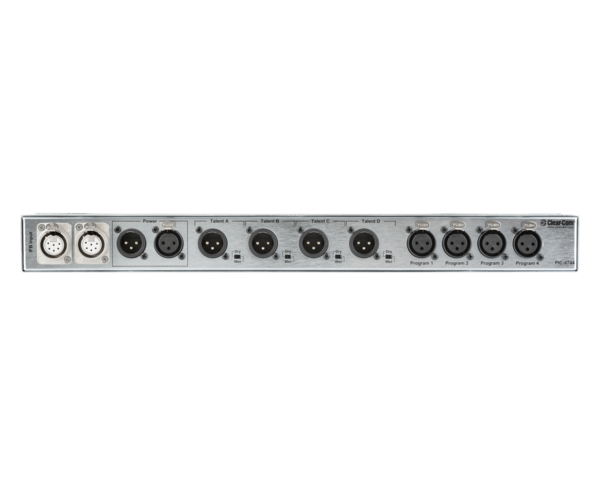

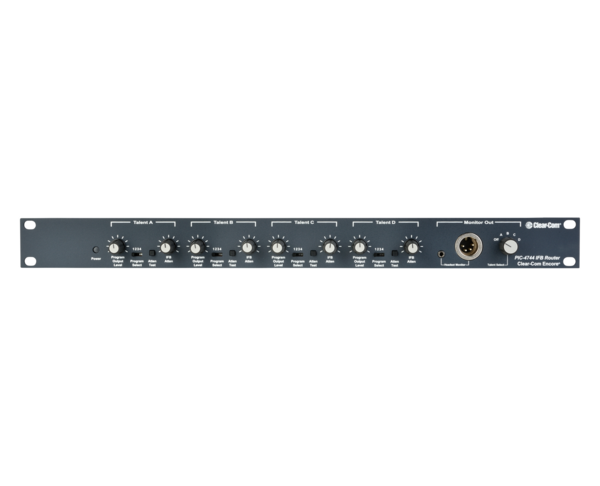

The PIC-4744 provides four XLR3M analog partyline level audio outputs (Talent channels) and four XLR3F analog line level audio inputs (Program channels). Each Talent channel can select and place one of the four program sources to the output. A front panel variable trim pot is supplied for adjusting the source level to the output.

Features:

  • Four separate program and talent channels
  • Wet/Dry switch for third-party wireless IFB access
  • Console input and recording device compatibility
  • Individually adjustable program attenuation per talent output
  • Tally lights indicating IFB channels in use
  • All IFB button to access all IFB channels simultaneously
  • Powered by the intercom line
Maximum Level Before Clipping >= 20dBu
Input Impedance <10kΩ
Output Level for Talent Clear-Com Partyline Level (approx. -10dBu)
PGM Source Adjustable Range +20dBu
Attenuation Adjustable Range 50dBu
Panel Input – Talent 200 – 18kHz +3dB
Program Input – Talent <= 0.1%
Program Input - Talent < -85dBu
Input Voltage Range 20-30V DC
Input Current <= 90mA
