PINSPOTQ1ZILS | COMPACT 20-WATT QUAD-COLOR (RGBW) LED PINSPOT FIXTURE WITH OLED DISPLAY

  • MAP: $189.99 / EA
  • List Price: $253.34 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 4
  • Sign In or Submit RFQ for accurate lead times
COMPACT 20-WATT QUAD-COLOR (RGBW) LED PINSPOT FIXTURE WITH OLED DISPLAY
COMPACT 20-WATT QUAD-COLOR (RGBW) LED PINSPOT FIXTURE WITH OLED DISPLAY
Click image to enlarge
COMPACT 20-WATT QUAD-COLOR (RGBW) LED PINSPOT FIXTURE WITH OLED DISPLAY
COMPACT 20-WATT QUAD-COLOR (RGBW) LED PINSPOT FIXTURE WITH OLED DISPLAY

PINSPOTQ1ZILS
COMPACT 20-WATT QUAD-COLOR (RGBW) LED PINSPOT FIXTURE WITH OLED DISPLAY

  • UM : EA
  • Estimated Weight: 20.0

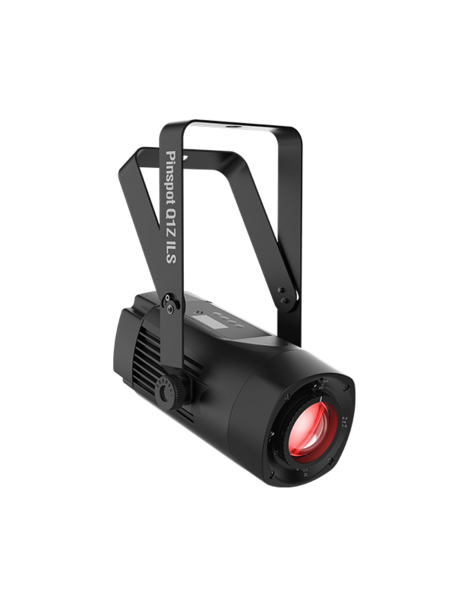

PinSpot Q1Z ILS is a compact 20-watt quad-color (RGBW) LED pinspot fixture with easy menu navigation from the OLED display. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Its manual zoom brings versatility to both short and long throw applications. Conveniently control this easy-to-use fixture with the IRC-6 remote, or your chosen ILS leader such as the ILS Command.

Features:

  • Compact pinspot fitted with a 20W quad-color RGBW LED
  • Manual zoom for short or long throw applications
  • D-Fi USB compatibility for wireless master/slave or DMX control (D-Fi USB sold separately)
  • Easy navigation and access to all functions directly from the OLED display
  • Convenient, wireless non-DMX control using the IRC-6 remote.
  • Fits best in the CHS-40 VIP Gear Bag
DMX Channels 4, 6, or 7

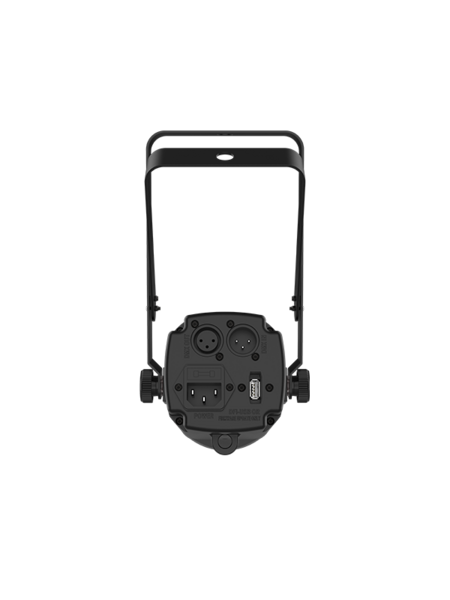

DMX Connectors 3-pin XLR
Light Source 1 LED (quad-color RGBW) 20 W, (5.3A), 50,000 hours life expectancy
Strobe Rate 0 to 33 Hz
Zoom Angle 5° to 25°
Lumens 617
Weight 3 lb (1.36 kg)
Size 12.1 x 3.5 x 8.5 in (308 x 89 x 217 mm)
Approvals CE, UKCA, ROHS
Power and Current 9 W, .3 A @ 120 V, 60 Hz
Power and Current 20 W, .2 A @ 230 V, 50 Hz
Optional Controllers IRC6, ILSCOMMAND
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Bracket Mounting Hole M12
Illuminance (narrow): 4,081 lux @ 2 m
Illuminance (Wide): 623 lux @ 2 m
