PM61 PERSONAL MONITOR EQ
PM61
PM61 PERSONAL MONITOR EQ
- UM : EA

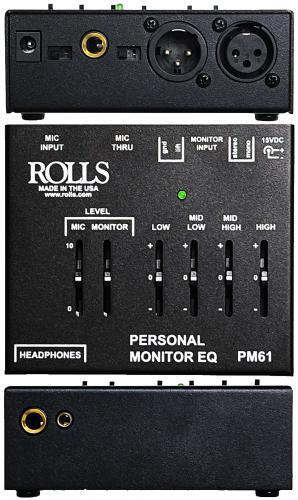

Meet the PM61, the ultimate solution for seamless audio mixing and precise monitoring with a four band EQ. This versatile device enables you to effortlessly blend a microphone XLR signal with a stereo or mono 1/4” input, delivering crystal-clear audio directly to your headphones.
The PM61 is equipped with essential features such as a monitor level control, mic/XLR level control, mic/line pass-through XLR jack, two headphone output jacks, and a stereo or mono TRS/TS 1/4" monitor input jack. These capabilities make it an indispensable tool for a diverse range of users—from drummers syncing with a click track to choir singers monitoring their performances, podcasters refining their recordings, and much more.
Whether you're a musician, podcaster, or recording professional, the PM61 is designed to enhance your workflow with unmatched precision.
Discover the PM61—your go-to companion for professional-grade audio mixing and monitoring with EQ.
- - Studio
- - Live
- - Broadcast
- Anywhere you need to mix a mic with a stereo or mono signal.
- Gain: 10 dB 1/4” 48 dB XLR “MIC”
- Input Impedance: 600 Ohms XLR 22K 1/4”
- Output Impedance: 10 Ohms
- Frequency Response: 3Hz to 100kHz
- THD: .05% @ 1KHz
- S/N Ratio: 90 dB
- PWR: 9-15 VDC
- Size: 4" x 3.5” x 1.5"
- Weight: .8 lbs
