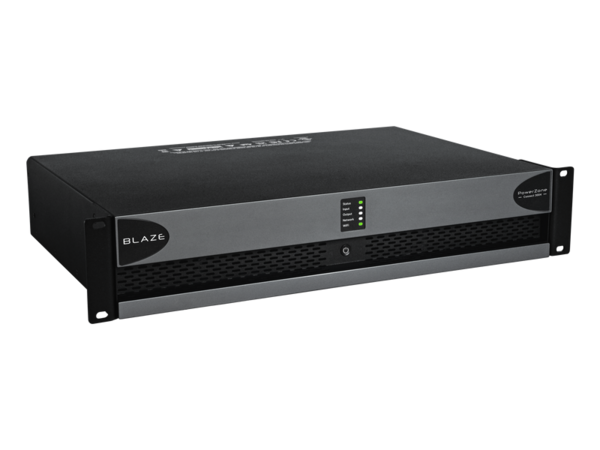

POWERZONE CONNECT 3004 | 3000 W DSP-ENABLED CLASS-D AMPLIFIER WITH 4 CHANNELS
POWERZONE CONNECT 3004
3000 W DSP-ENABLED CLASS-D AMPLIFIER WITH 4 CHANNELS
POWERZONE CONNECT 3004
3000 W DSP-ENABLED CLASS-D AMPLIFIER WITH 4 CHANNELS
- UM : EA
- Estimated Weight: 20.0
The PowerZone Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000W to 3000W. The PowerZone Connect 2U series powers both conventional low-impedance (2 O to 16 O) loudspeakers and constant voltage (70V/100V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.
Our intuitive PowerZone Control web app is built into all our PowerZone Connect amplifiers for easy system setup. PowerZone Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
Features
Full rack form factor
Full-matrix DSP configuration via PowerZone Control web app (built-in)
Hybrid power distribution in both Lo-Z and Hi-Z
Powered by Pascal UMAC Class-D technology
Flexible power sharing across output channels
S/PDIF input/output
Configurable GPIO
ErP and Energy Star compliant / UL listed audio equipment
|
Model |
PowerZone Connect 1002 |
PowerZone Connect 1502 |
PowerZone Connect 2004 |
PowerZone Connect 3004 |
|
Channels |
2 x Lo-Z/1 x Hi-Z |
2 x Lo-Z/1 x Hi-Z |
4 x lo-Z / 2 x Hi-Z |
4 x lo-Z / 2 x Hi-Z |
|
Output Power @ 2 O |
2 x 500 W (SE)* |
2 x 750 W (SE) |
4 x 500 W (SE) |
4 x 750 W (SE) |
|
Output Power @ 4 O |
2 x 500 W (SE) 1 x 1000 W (BTL)** |
2 x 750 W (SE) 1 x 1500 W (BTL) |
4 x 500 W (SE) 2 x 1000 W (BTL) |
4 x 750 W (SE) 2 x 1500 W (BTL) |
|
Output Power @ 8 O |
2 x 250 W (SE) 1 x 1000 W (BTL) |
2 x 400 W (SE) 1 x 1500 W (BTL) |
4 x 250 W (SE) 2 x 1000 W (BTL) |
4 x 400 W (SE) 2 x 1500 W (BTL) |
|
Output Power @ 70V |
1 x 1000 W (BTL) |
1 x 1200 W (BTL) |
2 x 1000 W (BTL) |
2 x 1200 W (BTL) |
|
Output Power @ 100V |
1 x 1000 W (BTL) |
1 x 1500 W (BTL) |
2 x 1000 W (BTL) |
2 x 1500 W (BTL) |
|
Power Consumption |
350 W |
350 W |
700 W |
700 W |
|
Dimensions |
88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in) |
88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in) |
88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in) |
88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in) |
|
Weight |
5.9 kg |
5.9 kg |
7.4 kg |
7.4 kg |
|
Output voltage |
65 Vp / 130 Vpp (SE unloaded) 130 Vp / 260 Vpp (BTL unloaded) |
80 Vp / 160 Vpp (SE unloaded) 160 Vp / 320 Vpp (BTL unloaded) |
65 Vp / 130 Vpp (SE unloaded) 130 Vp / 260 Vpp (BTL unloaded) |
80 Vp / 160 Vpp (SE unloaded) 160 Vp / 320 Vpp (BTL unloaded) |
|
Total System Power |
1000 W |
1500 W |
2000 W |
3000 W |
|
Output Circuitry |
UMAC Class D - full bandwidth PWM modulator with ultra-low distortion |
|||
|
Signal To Noise-Ratio |
> 106dB (A-weighted, 20Hz-20kHz, 8 O load) |
|||
|
THD+N (typical) |
< 0.05% (20Hz-20kHz, 8 O load, 3dB below rated power) |
|||
|
Frequency Response |
20Hz-20kHz (+0/-0.25dB (8 O load, 3dB below rated power) |
|||
|
Protection Circuits |
Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection |
|||
|
Power Supply |
UREC universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter |
|||
|
Operating temperature |
0-40°C |
|||
|
Operating voltage/ Frequency. |
Universal Mains, 100V-240V, 50Hz-60Hz |
|||
|
Standby Consumption |
< 0.5W |
|||
|
Power Ratings |
Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz |
|||
*SE – conventional, single ended output mode
**BTL – bridge-tied load output mode
