PTX3-19

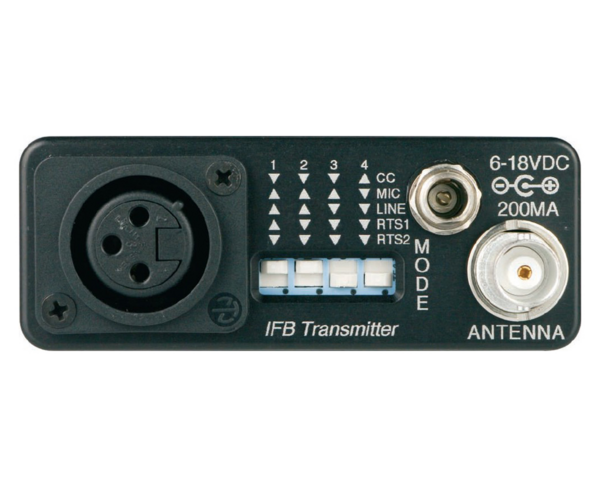

UHF IFB TRANSMITTER BASE STATION, FREQUENCY BLOCK 19: UHF WIRELESS IFB TRANSMITTER BASE
Click image to enlarge
PTX3-19
UHF IFB TRANSMITTER BASE STATION, FREQUENCY BLOCK 19: UHF WIRELESS IFB TRANSMITTER BASE
- UM : EA

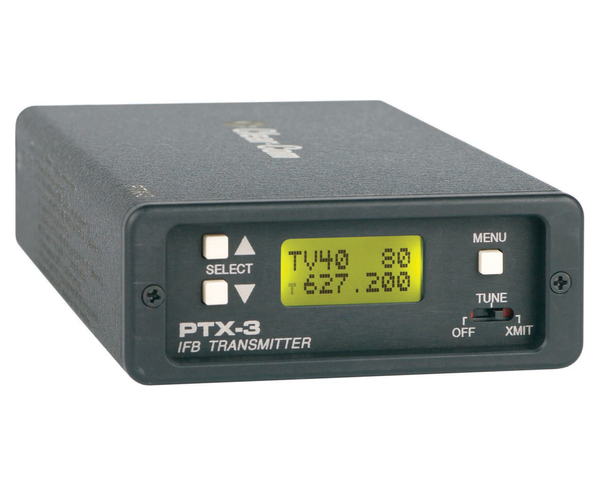

The PTX3-19 is an IFB transmitter featuring integrated DSP functionality and an LCD interface. The device includes selectable low-frequency roll-off and is compatible with equipment from other manufacturers.
Features:
- Standalone or rack mountable with prk-2 kit
- Selectable low-frequency roll-off
- Locked setting to prevent accidental changes
- Reduces channel noise and compandor artifacts
- Durable machined aluminum case
| Spurious & harmonic suppression | 37 dbc above 1 ghz |
|---|---|
| Operating Frequency | 486.4 to 511.9 MHz |
| Frequency stability | ±0.001% (10 ppm) @ 25ºc |
| Temperature stability | ±0.001% (10 ppm) from -30ºc to +50ºc |
| Channel selection | Momentary pushbutton switches, tune up and down |
| Compatibility modes | Ifb, digital hybrid wireless; 400 mode, 200 mode, 100 mode, mode 3, mode 6 |
| Pilot tone | 29.997 khz ifb mode, 32.765 khz 200 mode, 400 mode step selected, 32.768 khz mode 6 |
| Modulation | Fm, ±20 khz deviation ifb & 100 mode, ±75 khz 200 & 400 mode, ±50 khz mode 3 and mode 6 |
| Audio frequency response | 100 hz to 8 khz, ±1 db ifb mode; 30 hz to 20 khz ±1 db 200 & 400 mode |
| Signal to noise ratio | 90 db typical (“a” weighted) |
| Rf power output | 250 mw (nominal) |
×
×
