REMRB50CMIPCURVE | REM RIG BAR,USED FOR BOTH OVERHEAD HANGING AND GROUND STACKING

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
REM RIG BAR,USED FOR BOTH OVERHEAD HANGING AND GROUND STACKING
REM RIG BAR,USED FOR BOTH OVERHEAD HANGING AND GROUND STACKING

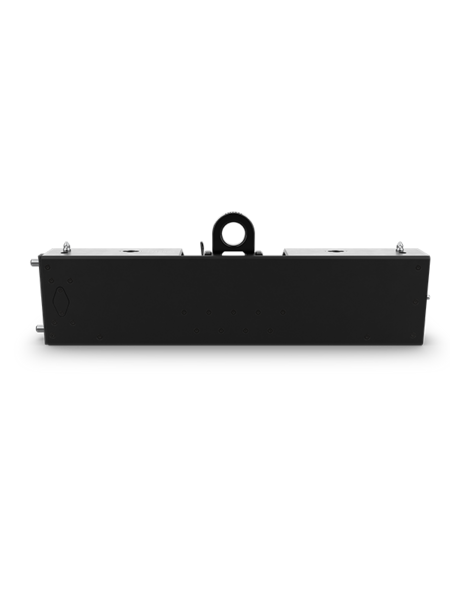

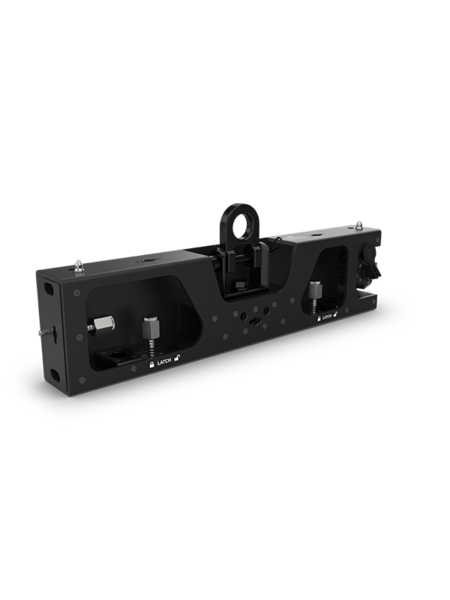

Click image to enlarge
REM RIG BAR,USED FOR BOTH OVERHEAD HANGING AND GROUND STACKING
REM RIG BAR,USED FOR BOTH OVERHEAD HANGING AND GROUND STACKING

REMRB50CMIPCURVE
REM RIG BAR,USED FOR BOTH OVERHEAD HANGING AND GROUND STACKING

  • UM : EA

REM-RB100CM IP and REM-RB50CM IP Curve are rugged IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

Features:

  • REM Rig Bar, used for both overhead hanging and ground stacking
  • Works with CHAUVET REM video panels
  • Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps using TRUSST CTC-50HC
Dimensions 19.67 x 2.36 x 4.72 in (499.6 x 60 x 120 mm)
Weight 16.8 lb (7.62 kg)
Exterior Color Black
Housing Material Aluminum extrusion, stainless steel
Load Capacity (Hanging) 1,760.6 lb (345 kg)
Load Capacity (Stacking) 1,752.7 lb (795 kg)
Recommended Shackle Sizes : 1/2”, 5/8”
IP Rating IP65, temporary outdoor/wet use
Required Software CHAUVET LED Studio and Windows7
Controller (required) EPIX Drive 642
Accessories (required) VIP Driver
Compatible Mounting Options MVP Rig Kit (truss mounting), PVPs Rig Kit (truss mounting), PVPs Rig Bar (0.5 m)(truss mounting), PVPx Rig Bar (0.5 m and 2 m)(truss mounting), M10 Bolt/Clamp (rear mounting), M12 Bolt/Clamp (rear mounting) (Video and Pixel products only)
Controllers (optional) IRC, FCW, ACW, FCT, FCM
