RIGLINKCOMBO10FT | RIGLINK TR1 DMX COMBO IP - 10FT

  • MAP: $91.00 / EA
  • List Price: $113.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 8
  • Sign In or Submit RFQ for accurate lead times

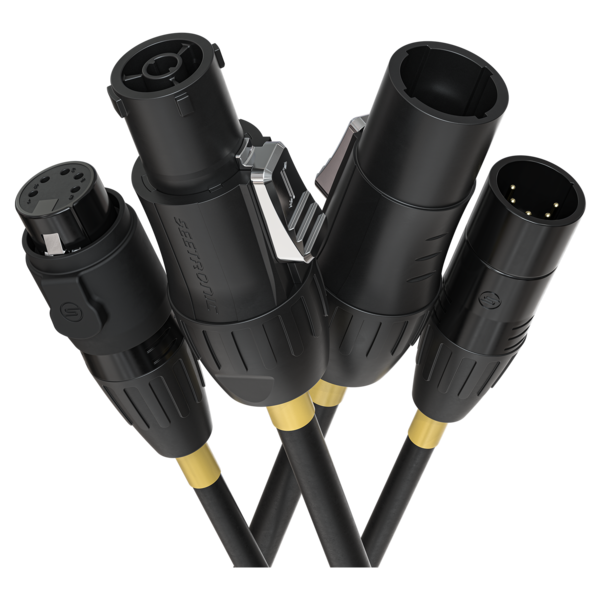

RIGLINK TR1 DMX COMBO IP - 10FT
Click image to enlarge

RIGLINKCOMBO10FT
RIGLINK TR1 DMX COMBO IP - 10FT

  • UM : EA
  • Estimated Weight: 22.0

IP65-rated Riglink combo power and data cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic production-grade connectors.

Features:

  • Delivers clean signal transmission with individually insulated conductors and 110 Ω impedance.
  • Built for touring and outdoor events with a rugged, all-weather IP65-rated construction.
  • Guarantees secure connections with professional-grade Seetronic power and data connectors.
  • Speeds up setup with color-coded connectors for immediate identification of cable lengths.
  • Built with certified components compliant with global safety standards for worldwide touring use.
  • Available in multiple lengths with both meter and feet markings for international convenience.
Conductor Specification2 x 0.34mm2 (22AWG) & 3 x 2.07mm2 (14AWG)
Conductor StructureOFC 19/0. 15TC & 66/0.20BC
Insulation MaterialHDPE & PVC
Insulation OD1.4mm & 3.0mm
FillerCotton & PPR
Wrapping TapeNon-woven fabric
Sheild StructureTinned copper wire, 82% AL, 100% coverage
Middle QuiltPVC
Outer Jacket MaterialPVC (Black)
Outer Diameter16.5 ± 0.2mm
Temperature Rating-20ºC – 70ºC
IP RatingIP65
Withstand Voltage0.5/1.5 AC kV/min
Conductor Resistance25.98 Ω/km & 7.98 Ω/km
Capacitance between Connectors100pF/m
Conductor shiels capacitance180pF/m
Impedance110 Ω
