RIGLINKDMX25FT |

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
Click image to enlarge

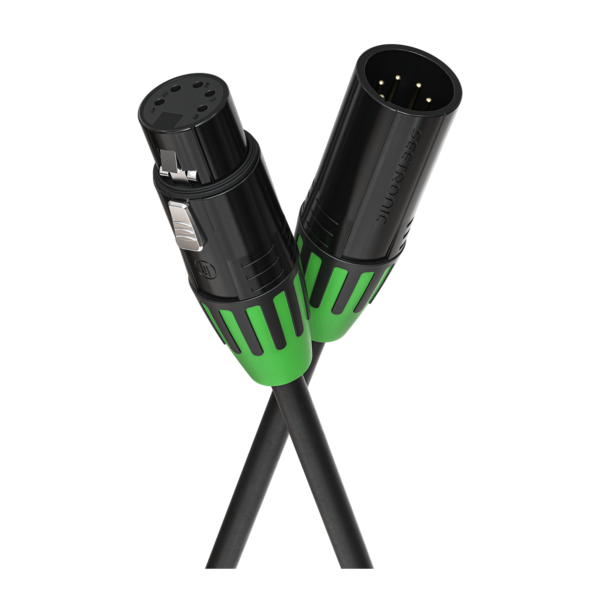

RIGLINKDMX25FT

  • UM : EA

Durable double-shielded Riglink production-grade DMX lighting cable designed for stable signal transmission.

5 PIN DMX - 25FT

Specifications

Construction / Physical

  • Conductor Specification: 2 x 0.22mm2 (24AWG)
  • Conductor Structure: OFC 20/0. 12BC
  • Insulation Material: LDPE
  • Insulation OD: 1.8mm
  • Shield Structure: OFC 16/8/0.1TC + AL
  • Outer Jacket Material: PVC (Black)
  • Outer Diameter: 6.0 ± 0.2mm
  • Temperature Rating: -20ºC – 70ºC
  • IP20

Connections

  • Seetronic SCM55-BG
  • Seetronic SCMF5-BG

Electrical

  • Withstand Voltage: 0.5kV
  • Conductor Resistance: 88.2 O/km
  • Capacitance between Conductors: 50 pF/m
  • Conductor and Sheild Capacitance: 122 pF/m
  • Impedance: 110 O

Cable

  • Metric: 1m, 3m, 5m, 10m, 20m
  • Imperial: 1.5ft, 5ft, 10ft, 25ft, 50ft
