RIGLINKIPDMX10FT | RIGLINK 5-PIN DMX IP - 10FT

  • MAP: $39.00 / EA
  • List Price: $49.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 30
  • Sign In or Submit RFQ for accurate lead times

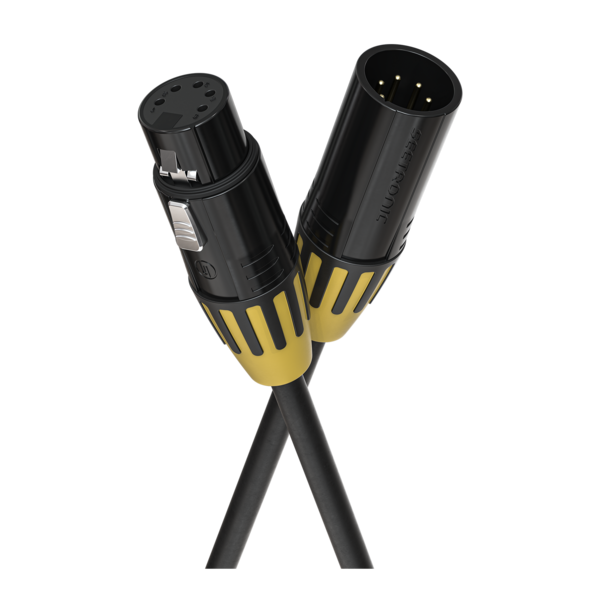

RIGLINK 5-PIN DMX IP - 10FT
Click image to enlarge

RIGLINKIPDMX10FT
RIGLINK 5-PIN DMX IP - 10FT

  • UM : EA
  • Estimated Weight: 21.0

Durable double-shielded Riglink production-grade DMX lighting cable designed for stable signal transmission.

Features:

  • Protects signal integrity with a double shield of braided and aluminum foil layers.
  • Delivers stable 110-ohm impedance using high-torsion tinned oxygen-free copper conductors.
  • Equipped with professional-grade Seetronic connectors for reliable and secure connections.
  • Housed in a highly elastic PVC jacket for exceptional durability and flexible handling.
  • Simplifies setup with color-coded connectors for fast identification of different cable lengths.
  • Ensures stable signal transmission with low-dielectric LDPE insulation for precise impedance.
Conductor Specification2 x 0.22mm2 (24AWG)
Conductor StructureOFC 20/0. 12BC
Insulation MaterialLDPE
Insulation OD1.8mm
Shield StructureOFC 16/8/0.1TC + AL
Outer Jacket MaterialPVC (Black)
Outer Diameter6.0 ± 0.2mm
Temperature Rating-20ºC – 70ºC
IP RatingIP20
Withstand Voltage0.5kV
Conductor Resistance88.2 Ω/km
Capacitance between Conductors50 pF/m
Conductor and Sheild Capacitance122 pF/m
Impedance110 Ω
