RIGLINKIPDMX25FT | RIGLINK 5-PIN DMX IP - 25FT
RIGLINKIPDMX25FT

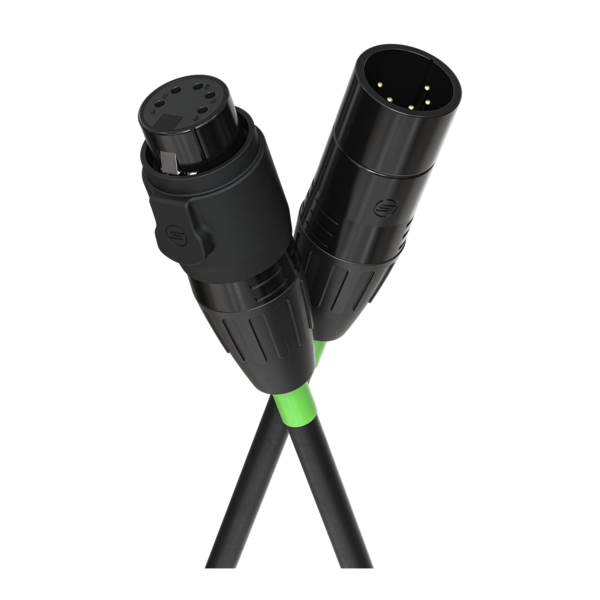

RIGLINK 5-PIN DMX IP - 25FT
Click image to enlarge
RIGLINKIPDMX25FT
RIGLINK 5-PIN DMX IP - 25FT
- UM : EA
- Estimated Weight: 17.0
IP65-rated Riglink production-grade DMX lighting cable designed for reliable signal transmission and robust connections in both installed and touring environments.
Features:
- Features a double-shielded design with a high-torsion OFC core for superior signal protection.
- Engineered for 110Ω DMX-512 applications with low-capacitance insulation for signal stability.
- Equipped with professional-grade Seetronic connectors to ensure a robust and reliable connection system.
- Built with a highly elastic and durable PVC outer jacket for flexibility in touring applications.
- Offers color-coded connectors for quick and easy identification of cable lengths during setup.
- Available in multiple standard lengths to accommodate a wide variety of professional setups.
| Conductor Specification | 2 x 0.22mm2 (24AWG) |
|---|---|
| Conductor Structure | OFC 20/0. 12BC |
| Insulation Material | LDPE |
| Insulation OD | 1.8mm |
| Shield Structure | OFC 16/8/0.1TC + AL |
| Outer Jacket Material | PVC (Black) |
| Outer Diameter | 6.0 ± 0.2mm |
| Temperature Rating | -20ºC – 70ºC |
| IP Rating | IP65 |
| Withstand Voltage | 0.5kV |
| Conductor Resistance | 88.2 Ω/km |
| Capacitance between Conductors | 50 pF/m |
| Conductor and Sheild Capacitance | 122 pF/m |
| Impedance | 110 Ω |
×
