RIGLINKXLR418IN | RIGLINK 4-PIN XLR IP - 1.5FT

  • MAP: $25.00 / EA
  • List Price: $31.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 60
  • Sign In or Submit RFQ for accurate lead times

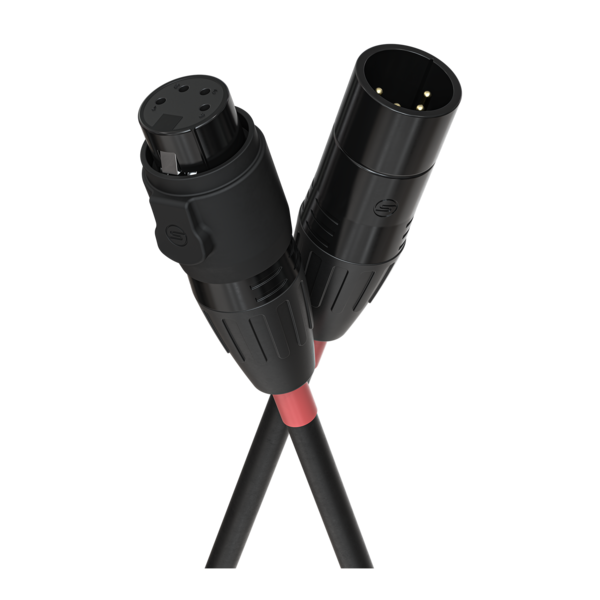

RIGLINK 4-PIN XLR IP - 1.5FT
Click image to enlarge

RIGLINKXLR418IN
RIGLINK 4-PIN XLR IP - 1.5FT

  • UM : EA
  • Estimated Weight: 25.0

IP65-rated Riglink combined data and power cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic production-grade connectors.

Features:

  • Features a highly elastic PVC outer jacket for a durable and flexible cable body.
  • Ideal for both permanent installations and demanding mobile touring applications.
  • Designed for seamless compatibility with ÉPIX, STRIKE Array 1, and other 4-pin products.
  • Offers color-coded connectors to quickly identify different cable lengths on site.
  • Certified components meet global safety standards for reliable and compliant operation.
  • Built rugged for live production with a high withstand voltage rating of 1.5kV.
Conductor Specification2 x 0.75mm2 (18AWG) & 2 x 2.5mm2 (13AWG)
Conductor StructureOFC 24/0. 2BC & OFC 50/0.25BC
Insulation MaterialPVC
Insulation OD2.4mm & 3.5mm
Outer Jacket MaterialPVC (Black)
Outer Diameter9.5 ± 0.2mm
Temperature Rating-20ºC – 70ºC
IP RatingIP65
Withstand Voltage1.5kV
Conductor Resistance25.98 Ω/km & 7.98 Ω/km
