ROGUEOUTCAST1BWM | ROGUE OUTCAST 1 BEAMWASH M

  • MAP: $3,083.00 / EA
  • List Price: $3,539.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ROGUE OUTCAST 1 BEAMWASH M
ROGUE OUTCAST 1 BEAMWASH M
Click image to enlarge
ROGUE OUTCAST 1 BEAMWASH M
ROGUE OUTCAST 1 BEAMWASH M

ROGUEOUTCAST1BWM
ROGUE OUTCAST 1 BEAMWASH M

  • UM : EA
  • Estimated Weight: 24.0

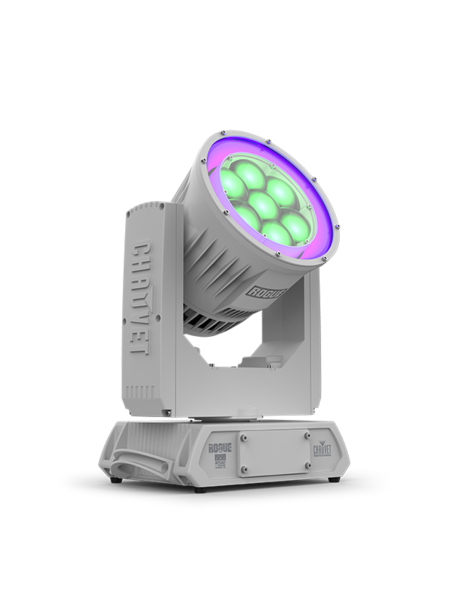

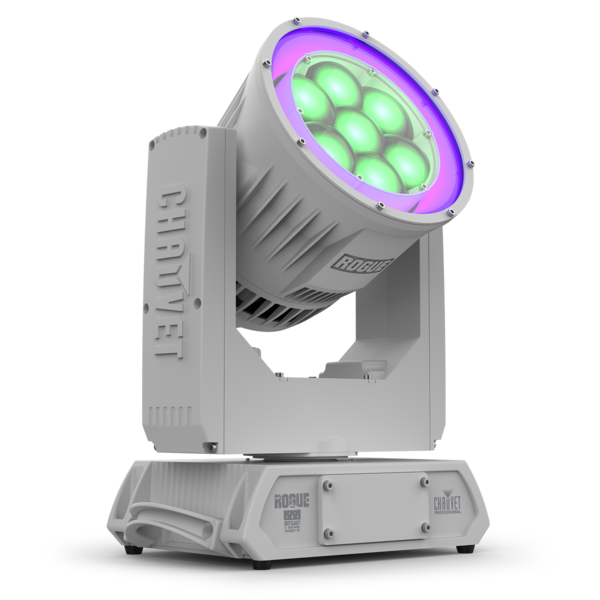

Rogue Outcast 1 BeamWash M brings layers of external corrosion resistance with its full aluminum construction, C5M marine-grade finish, and rugged IP66 build engineered with the enhanced protections needed to perform extended duty in and near marine environments. Seven 45W high-powered RGBW LEDs and a unique lens design deliver smoothly blended color washes and tight beam effects, while a 12-zone pixel-mappable outer ring provides limitless creative possibilities. Create dynamic looks while withstanding the most demanding environments, whether on tour, cruise ships, or lighting theme park and architectural exteriors.

Features:

  • Delivers an expansive zoom range from a tight 3.9° beam to a broad 55.3° wash.
  • Built with a C5M marine-grade finish and full aluminum construction for extreme weather durability.
  • Achieves exceptionally smooth fades with 16-bit dimming and a selectable calibrated white of 7500 K.
  • Powered by seven high-output 45W RGBW LEDs for intense, smoothly blended color washes.
  • Supports DMX and RDM protocols with six DMX personalities for ultimate programming versatility.
  • Ensures flicker-free on-camera performance with user-selectable Pulse Width Modulation settings.
Light Source7 LEDs (quad-color RGBW) 45W, (3 A), 50,000 hours life expectancy
Light Source97 LEDs Outer Ring (tri-color RGB) 0.2 W, (20 mA), 50,000 hours life expectancy.
Color Temperature (range)2800 to 10000 K
Beam Angle9.1° to 32.3°
Field Angle11.2° to 49.2 °
Zoom Range3.9° to 55.3°
Zoom Angle11° to 63.2 °
Lumens – Source5,900
Lumens – Output4,073
Selectable PWM600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

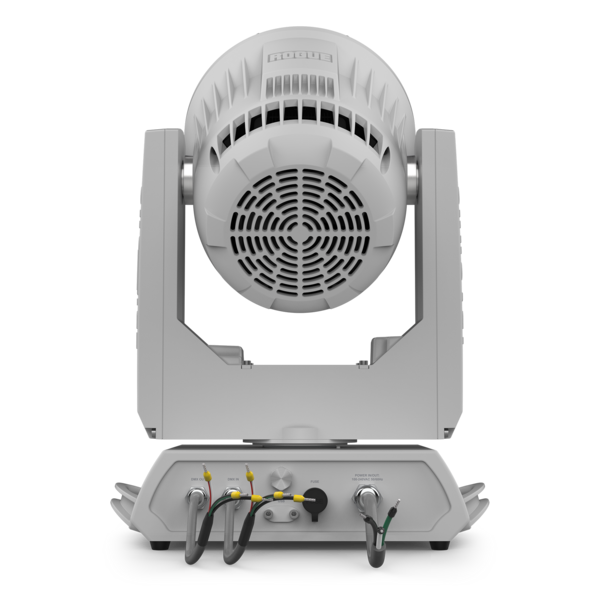

Power ConnectionEdison (local) plug to Seetronic PowerKON IP65
Data Connectors5-pin XLR
Cable Length (power input)5 ft (1.5 m)
Cable Length (signal in/out)5 ft (1.5 m)
Control ProtocolDMX, RDM
DMX Channels15, 24, 30, 64, 111 or 135
Modes/Personalities6 personalities (15, 24, 30, 64, 111, 135)
Input Voltage100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking3 units @ 120 V
6 units @ 208 V
7 units @ 230 V
Power and Current385 W, 3.25 A @ 120 V, 60 Hz
Power and Current376 W, 1.92 A @ 208 V, 60 Hz
Power and Current372 W, 1.69 A @ 230 V, 50 Hz
Fuse Size8A, 250 V
CertificationsCE, MET, FCC, FCC, UKCA
IP RatingIP66, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient)-4 °F to 113 °F (-20 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc)80° C / 176° F
Maximum Ambient Temperature (ta)45° C / 113° F
