ROGUEOUTCAST1MBEAM | ROGUE OUTCAST 1M BEAM
ROGUEOUTCAST1MBEAM
ROGUE OUTCAST 1M BEAM
ROGUEOUTCAST1MBEAM
ROGUE OUTCAST 1M BEAM
- UM : EA
- Estimated Weight: 33.0

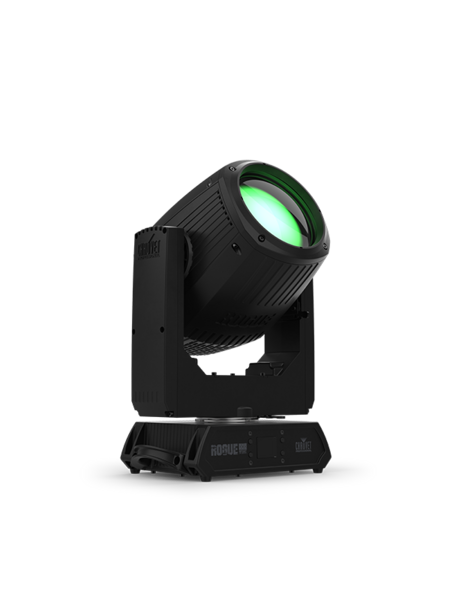

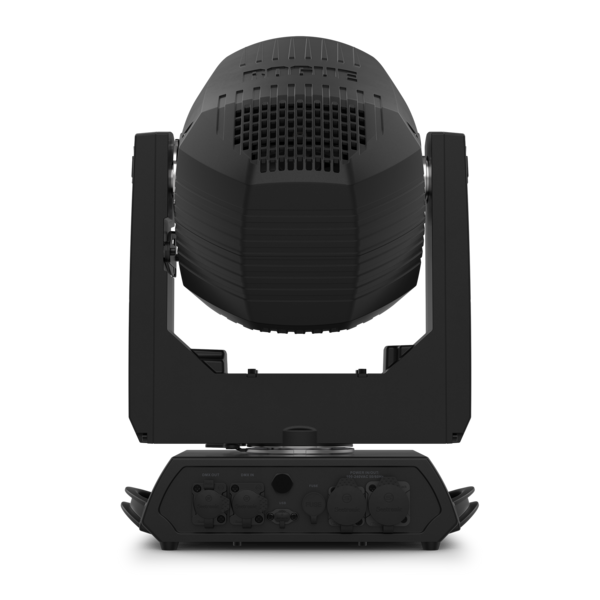

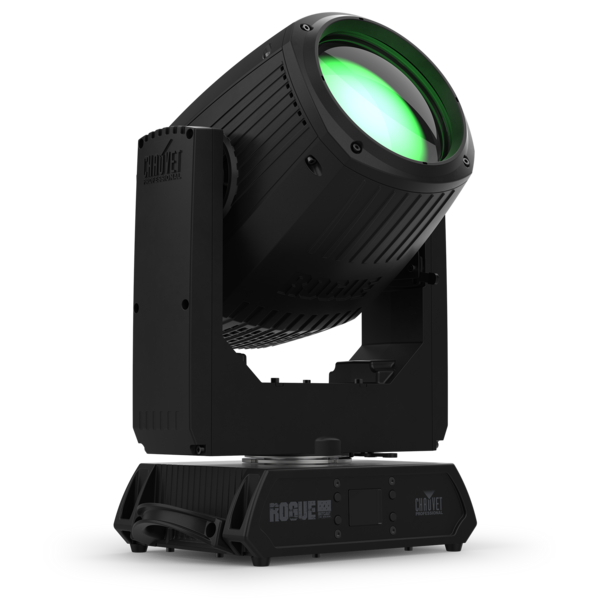

Spin out with continuous 360 degree rotation. Stand out with a Mint-powered RMB light engine that sets Rogue Outcast 1M Beam apart from the rest of the pack by offering a multi-color LED solution and great optics to produce sharp beams of the highest quality white light and your choice of color. A compact beam fixture that weighs in under thirty pounds, designed to deliver fast and precise performance as well as easy event setups. Create stunning aerial effects with dual overlapping prisms or instantly punch up pencil-thin beams with a selection of aperture gobos. IP65-rated and ready to go anywhere, Rogue Outcast 1M Beam handles outdoor use as well as it handles haze, dust, confetti and other elements in permanent indoor installations with minimum need for upkeep.
Features:
- Houses a 120W RMB LED engine for a wide color spectrum without a color wheel.
- Projects a highly focused 1.9° beam for creating crisp, well-defined aerial effects.
- Offers dual, layerable 6- and 8-facet prisms for creating complex aerial looks.
- Provides infinite pan and tilt rotation for dynamic, continuous high-speed movement effects.
- Housed in a lightweight, IP65-rated body for reliable performance and easy event setups.
- Includes 17 static gobos and a frost filter for versatile beam shaping and wash effects.
| Light Source | 1 LEDs (Red,Mint,Blue) 120 W, (3.34A), 50,000 hours life expectancy |
|---|---|
| Color Temperature (at full) | 10,398 K |
| Front lens diameter | 140 mm |
| CRI | 80.8 |
| Beam Angle | 1.9° |
| Field Angle | 2.7° |
| Cutoff Angle | 3.4° |
| Lumens (Output) | 4,488 |
| Illuminance (total) | 117,690 lux @ 5 m |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 21 or 25 |
| Modes/Personalities | 2 personalities (21, 25) |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, outdoor/wet, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
