ROGUEOUTCAST3XWASH | ROGUE OUTCAST 3X WASH

  • MAP: $3,955.00 / EA
  • List Price: $4,540.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ROGUE OUTCAST 3X WASH
ROGUE OUTCAST 3X WASH
Click image to enlarge
ROGUE OUTCAST 3X WASH
ROGUE OUTCAST 3X WASH

ROGUEOUTCAST3XWASH
ROGUE OUTCAST 3X WASH

  • UM : EA
  • Estimated Weight: 48.0

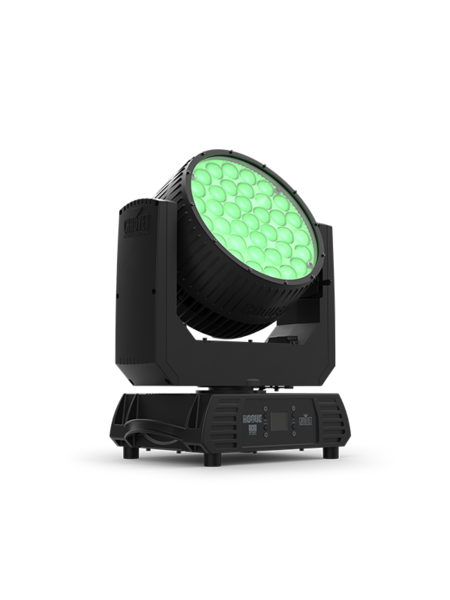

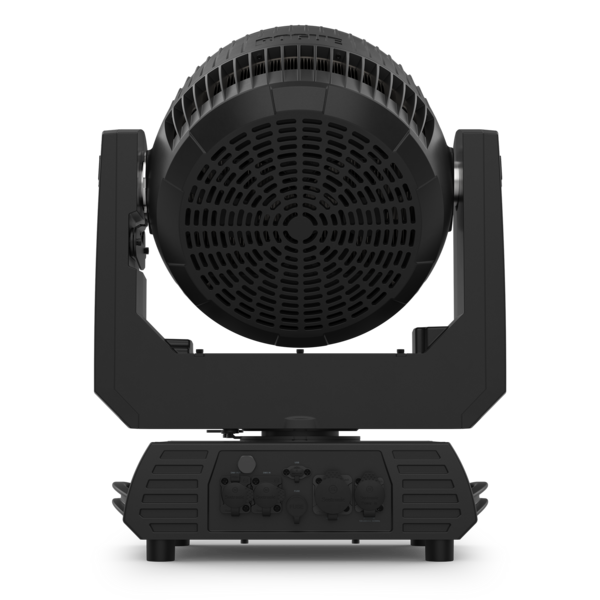

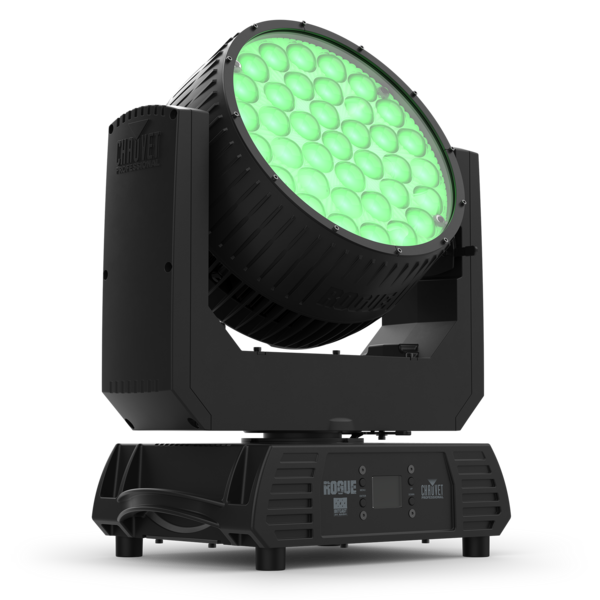

Rogue Outcast 3X Wash brings a fast zoom from beam to wash, the power to punch through fog or haze, and alloy-armored IP65-rated durability that withstands the elements, from dust to rain, indoors or out. Offering the convenience of selecting simple or complex DMX personalities, this versatile workhorse suits the widest range of applications, including on-camera use with its user selectable calibrated white. 37 bright 25W RGBW LEDs occupy 9 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.

Features:

  • Generates a powerful, even field of light from thirty-seven 25 W RGBW LEDs.
  • Offers a versatile zoom range from a tight 9.3° beam to an expansive 62.6° wash.
  • Built with a rugged yet lightweight aluminum and magnesium alloy IP65-rated housing.
  • Ensures flicker-free on-camera operation with selectable PWM and a calibrated white setting.
  • Achieves exceptionally smooth fades with 16-bit dimming and six distinct dimming modes.
  • Provides flexible programming with four DMX personalities and RDM for remote setup.
Light Source37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range)2800 to 10000 K
Beam Angle9.3° to 33.9°
Field Angle11.6° to 49.5°
Cutoff angle13.1° to 62.6°
Zoom Angle9.3° to 62.6°
Lumens – Source17,000
Lumens – Output13,440
Selectable PWM600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Power ConnectionEdison (local) plug to Seetronic PowerKON IP65
Power InputSeetronic PowerKON IP65
Power OutputSeetronic PowerKON IP65
Data Connectors5-pin XLR
Cable Length (power)5 ft (1.5 m)
Control ProtocolDMX, RDM
DMX Channels21, 62, 71, 107
Modes/Personalities4 personalities
