RPAK-810-72-LC |

  • MAP: $146.61 / EA
  • List Price: $166.60 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
Click image to enlarge

RPAK-810-72-LC

  • UM : EA

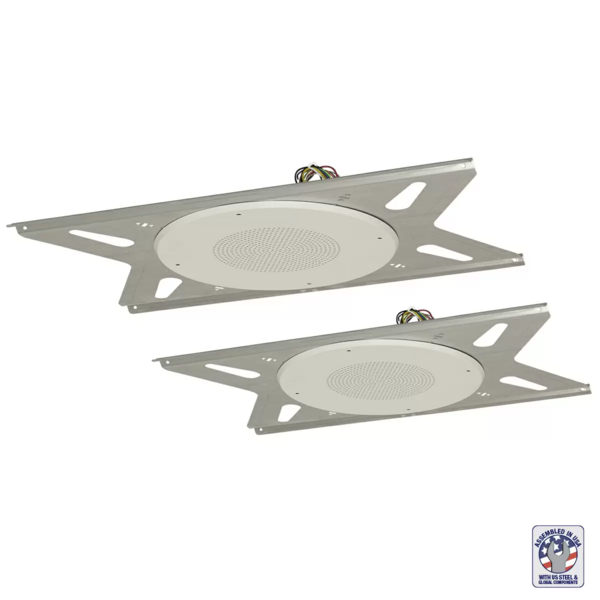

Model RPAK-810-72-LC, for general purpose paging and background music, includes a set of two (2) 8-inch 15W dual cone speakers with factory-mounted dual-voltage (25V/70V) transformers, round steel grilles, and tile-bridges.

  • Driver (No. 810):  8 in. 15W dual cone with 10 oz. magnet, 54Hz–11.6kHz (±6dB) and 50Hz–20kHz (±6.6dB) frequency response, 97.9dB average sensitivity measured 1W/1M.
  • Dual-Voltage Transformer:  25V/70V transformer with primary taps at .25, .5, 1, 2 and 5W.
  • Steel Grille (No. WB-8):  Factory mounted to driver with welded studs. Installs to enclosure and T-bridge with four white screws (provided). White finish.
  • Tile-Bridge (No. LBS8-R1): Transfers weight to ceiling support structure in suspended tile ceilings. Galvanized steel with 4 wire-tie holes for seismic anchoring. 23.75 in. long.
