RS-801-IM | ENCORE MARINE CERTIFIED, DNV-GL REGISTERED AND IP-53 RATED SINGLE-CHANNEL STANDARD BELTPACK
RS-801-IM
ENCORE MARINE CERTIFIED, DNV-GL REGISTERED AND IP-53 RATED SINGLE-CHANNEL STANDARD BELTPACK

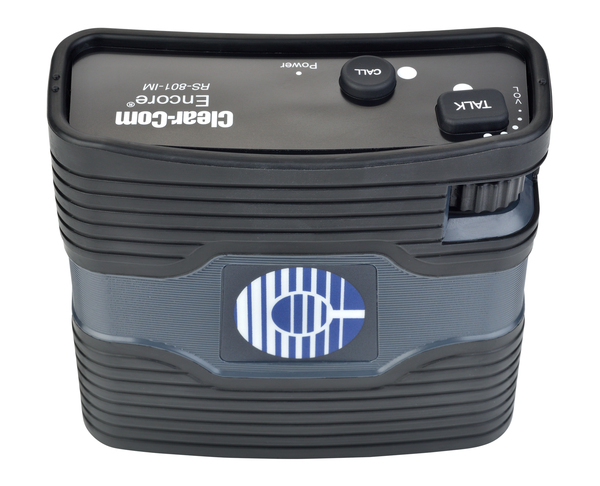

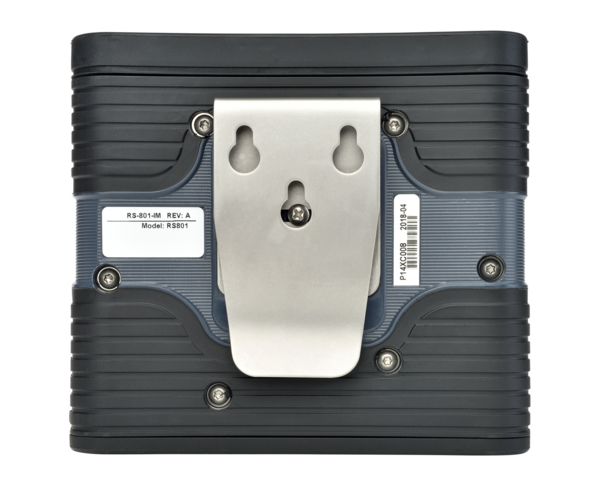

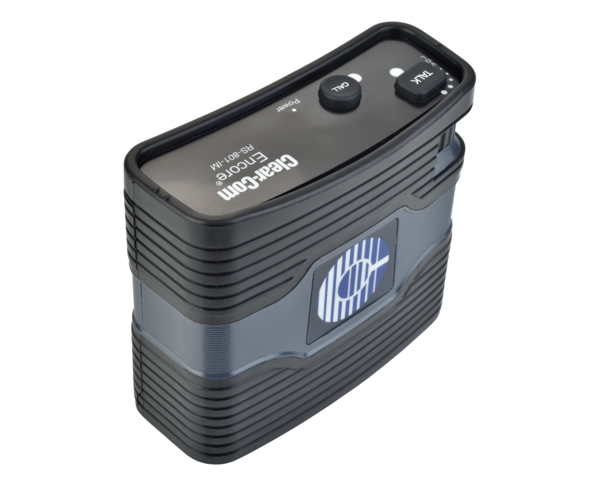

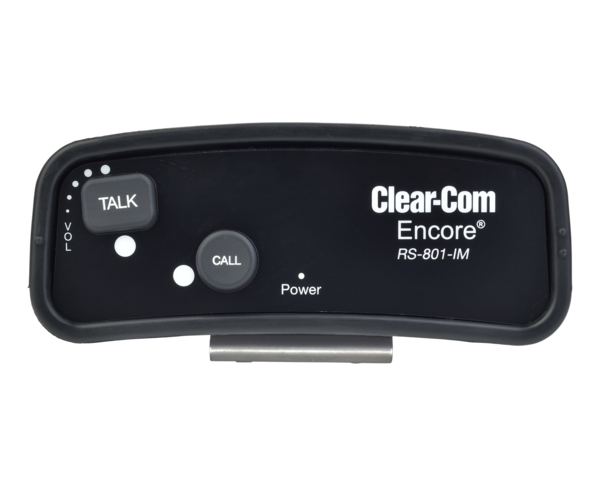

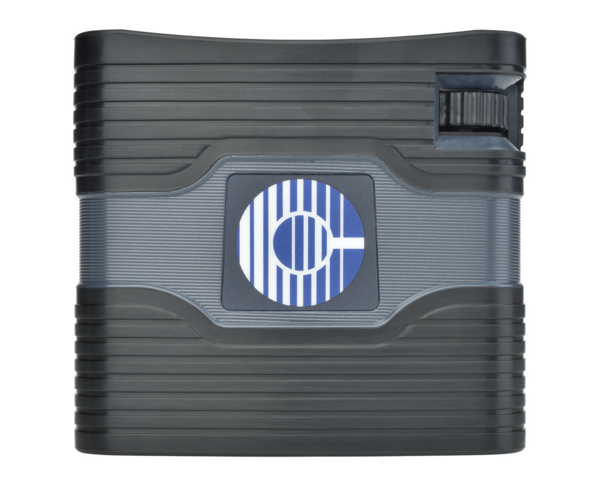

Click image to enlarge
RS-801-IM
ENCORE MARINE CERTIFIED, DNV-GL REGISTERED AND IP-53 RATED SINGLE-CHANNEL STANDARD BELTPACK
- UM : EA
The RS-801-IM is a single-channel analog beltpack designed to transmit power and audio signals via an XLR-3 line connector.
For power requirement estimations in analog partyline systems, refer to the Encore Power Supply Calculator.
Features:
- IP53 weather-proof rating
- Sealed for salt-mist and humidity
- Asbestos-free per SOLAS Regulation II-I/3-5.2
- Marine certified DNVGL-CG-0339 (2016)

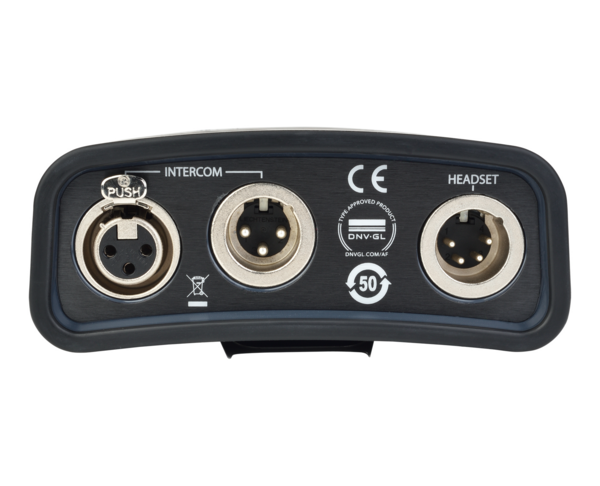

- XLR-3 connectors for two-channel and program audio
- Concealed programmable DIP switches
- Low operating current for beltpack daisy-chaining
- Rugged and strong construction
- Clear-Com sound for intelligible audio
| Frequency Response | 280 – 15kHz ± 3dB |
|---|---|
| Microphone output to line – Audio Level (-50dBm Electret input) | -9dBm |
| Microphone output to line – Distortion | <0.1% |
| Microphone output to line – Signal to Noise | >65dB |
| Frequency Response – Line to Headphone | 150 – 20k Hz ± 3dB |
| Headphone input from line – Audio Level (-9dBm Electret input) | 3.5dBm |
| Headphone input from line – Distortion | <0.5% |
| Headphone input from line – Signal to Noise | >50dB |
| Earphone to Mic – Crosstalk | >80dB |
| Sidetone – Adjustment Range (-80db mic input) | >45dB |
×
×
×
×
×
