RS4-EZ-BK | 4" FULL-RANGE PENDANT SPEAKER, BLACK
RS4-EZ-BK
4" FULL-RANGE PENDANT SPEAKER, BLACK
RS4-EZ-BK
4" FULL-RANGE PENDANT SPEAKER, BLACK
- UM : EA
- Estimated Weight: 7.0

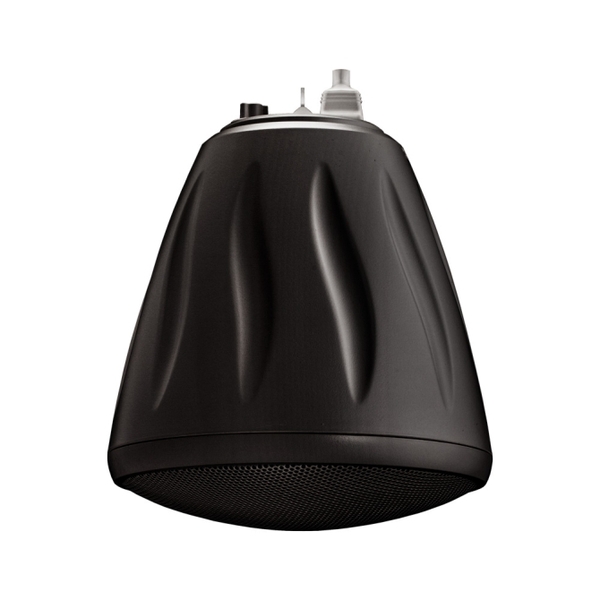

SoundTube RS4-EZ Hanging Speaker in Black
The RS4-EZ is a 4-inch, full-range, ported speaker with an open-ceiling enclosure design. Hanging hardware is included and features a SpeedClamp™ self-locking wire grip for fast, easy and secure installation. RS4-EZ speakers utilizes the patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. The easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. The RS4-EZ speakers average sensitivity of 90.0 dB offers high-output capabilities and reduced amplification costs. SoundTube®'s custom-engineered driver and electro-acoustic network deliver high-performance sound in a cost-effective speaker design. The RS4-EZ speaker incorporates a low-profile grille and a five-position tap switch with transformer bypass position. Euroblock connector and terminal weather boot are included.
|
Color |
Black |
|
UPC |
644216201907 |
|
Manufacturer |
SoundTube |
|
Manufacturer's Category |
RS-EZ Economical Pendant |
|
Height |
8.8 in / 223.5 mm |
|
Width/Diameter |
7.7 in / 195.6 mm |
|
Shipping Weight |
5.95 lbs / 2.7 kg |
|
Carton Height |
10.5 in / 266.7 mm |
|
Carton Length |
10 in / 254 mm |
|
Carton Width |
10 in / 254 mm |
|
Certifications |
CE, RoHS, UL2239 |
|
Enclosure Properties |
ABS Glass Fiber Reinforced, Injection Molded, Ported |
|
Enclosure Volume |
154.7 cu in / 2535.08 cu cm |
|
Included Accessories |
Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
|
Optional Accessories |
Black Grille (GRL-RS4EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-M-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
|
Source Inputs |
4 Pin 5.08mm Euroblock |
|
TAA Compliant (Trade America) |
No |
|
BAA Compliant (Made in USA) |
No |
|
Coverage Angle (±6dB @ 2kHz) |
60° |
|
Crossover Frequency |
N/A |
|
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) |
4.3 and 3.8 |
|
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) |
4.9dB and 5.8dB |
|
Frequency Response (± 10 dB) |
98 Hz - 22 kHz |
|
Frequency Response (± 3 dB) |
185 Hz - 13 kHz |
|

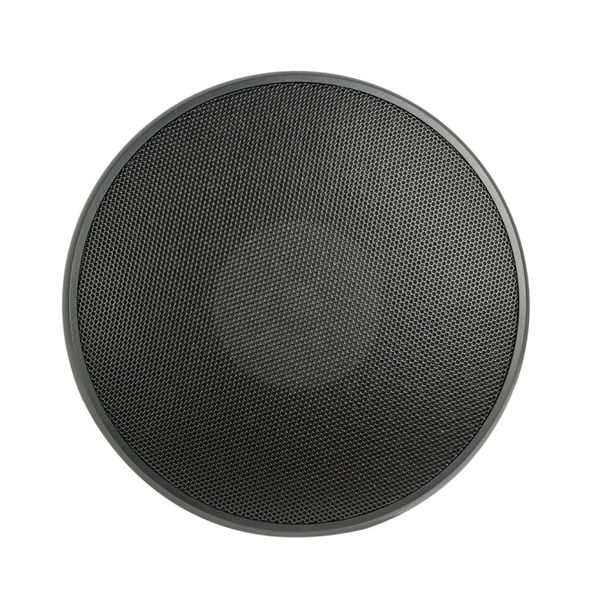

Grille Properties |
Powder-Coated, Steel |
|
Low Frequency Voice Coil |
0.79 in / 20 mm |
|
Max. Continuous Power RMS |
20W |
|
Max. Program Power |
40 W |
|
Minimum Impedance (O Ohms) |
6.9 O |
|
Nominal Impedance (O Ohms) |
8 O |
|
Fullrange Driver |
4" Extended-Range Paper Cone |
|
Sensitivity dB @ 1W/1M |
90 dB |
|
Sensitivity dB @ 2.83V/1M |
90 dB |
|

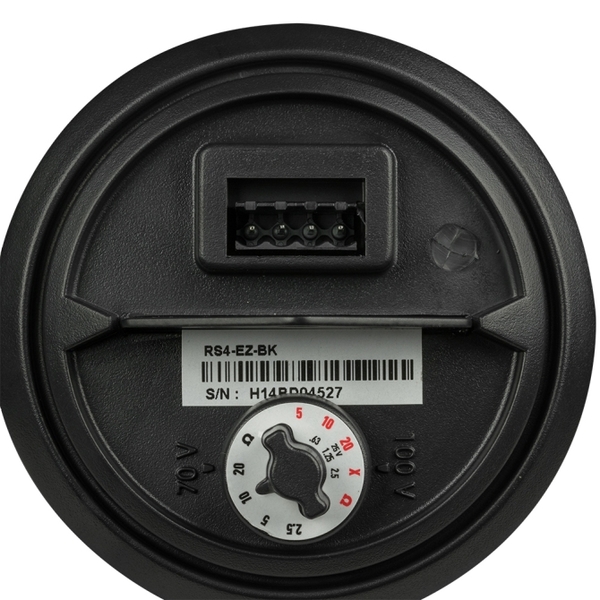

Tap Selector |
Rotary Switch |
|
Transformer Options |
25 / 70.7 / 100 V, 8 Ohm direct |
|
Transformer Taps Max. Setting (25V/70.7V/100V) |
2.5W/20W/20W |
